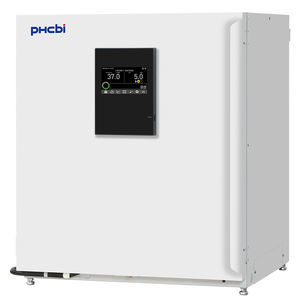

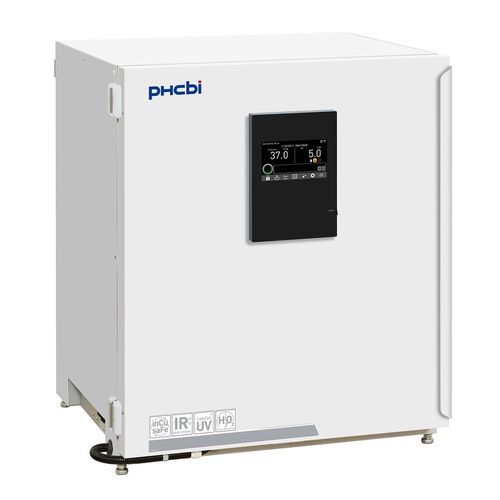

CO2 incubator MCO-233AICUVH-PE

laboratoryfor cell culturesforced convection

Overview
The MCO-233AICUVH-PE IncuSafe CO₂ incubator provides controlled CO₂, temperature and humidity for reproducible cell culture workflows. It combines a 230 L usable chamber with rapid high‑level decontamination and continuous contamination prevention features to support R&D, clinical and small-scale manufacturing operations.

Key features

• Direct Heat and Air Jacket System for uniform and responsive chamber temperature control.
• Dual IR CO₂ sensor for fast, stable CO₂ control and rapid gas recovery after door openings without overshoot.
• Integrated high‑speed decontamination using vaporised H₂O₂ plus UV‑LED to decontaminate the chamber in under three hours with a minimum 6‑log reduction of major contaminants.
• Continuous contamination prevention via InCu‑saFe copper‑enriched stainless steel interior and SafeCell UV‑LED lamp that decontaminates circulating air and humidifying water without affecting cultures.
• 230 L effective capacity suitable for R&D, clinical and small manufacturing applications.
• Full‑colour LCD touchscreen with glove‑friendly operation and USB data export for monitoring and records.
• Easy‑clean chamber design with rounded corners and integrated shelf supports.

Time‑saving decontamination
The integrated H₂O₂ vapor plus UV‑LED decontamination reduces incubator downtime, enabling faster turnaround and improved laboratory throughput while achieving high microbial reduction.

Continuous contamination management
The InCu‑saFe interior and SafeCell UV‑LED continuously reduce airborne and waterborne microbial load, supporting long‑term culture stability and reducing routine maintenance interventions.

Benefits

• Optimised cell growth: stable chamber environment for consistent, reproducible culture results.
• Efficient workflows: shorter downtime and faster decontamination cycles.
• Scale‑up ready: 230 L capacity suitable for transitions from R&D to clinical trials or small production.

Technical specifications

• Model: MCO-233AICUVH-PE
• External dimensions (W x D x H): 770 x 730 x 905 mm
• Internal dimensions (W x D x H): 643 x 523 x 700 mm
• Volume: 230 litres
• Net weight: 80 kg
• Temperature control range & fluctuation: AT +5 ~ +50 °C, ±0.1 °C
• Temperature uniformity: ±0.25 °C
• CO₂ control range & fluctuation: 0 ~ 20 %, ±0.15 %
• Humidity level & fluctuation: 95 % RH, ±5 %
• H₂O₂ decontamination: Standard (vaporised H₂O₂ decontamination board and generator supported)
• Temperature sensor: Thermistor
• CO₂ sensor: Dual IR
• Display: LCD touchscreen (full colour)
• Exterior material: Painted steel (rear cover not painted)
• Interior material: Stainless steel copper‑enriched alloy (InCu-saFe)
• Insulation: Expandable styrene‑acrylonitrile beads
• Heating method: Direct Heat & Air Jacket System
• Outer door: 1 (electric door lock with password: standard; field reversible door: included)
• Inner door: 1 gas‑tight tempered glass inner door
• Shelves: 4 x stainless steel copper‑enriched alloy (shelf dimensions 620 x 450 x 12 mm)
• Max load per shelf: 7 kg (max shelf capacity: 10)
• Access port: 1 (rear), diameter 30 mm
• Alarms: power failure, out of temperature setting, high temperature, out of CO₂ setting, door open (various visual/audible alarm states)
• Power supply / Frequency: 230 V / 50 Hz
• Noise level: 25 dB
• Standard options & compatible accessories: SafeCell UV® system (standard), H₂O₂ decontamination board (standard), optional H₂O₂ vapor generator (MCO-50HP-PW), H₂O₂ reagent pack (MCO-20H2O2-PE), CO₂ gas pressure regulator, automatic CO₂ cylinder changeover system, semi‑automatic one‑point gas calibration kit, InCu‑saFe shelves and half tray systems, stacking/roller base options.
