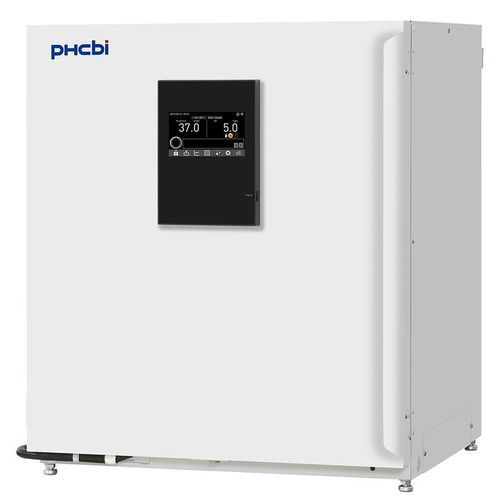

CO2 incubator MCO-233AICUV-PE

for cell cultureslaboratoryforced convection

Overview
The MCO-233AICUV-PE IncuSafe CO₂ Incubator delivers precise environmental control and active contamination prevention for reliable and reproducible cell culture results. With a 230 L chamber it is designed for laboratories requiring consistent performance, ease of use and efficient workflows.

Key features

• Direct Heat and Air Jacket System for accurate, uniform and highly responsive temperature control
• Dual IR CO₂ sensor for rapid gas recovery after door openings
• InCu-saFe copper-enriched stainless steel interior providing natural antimicrobial properties
• SafeCell UV-LED lamp continuously decontaminates circulating air and humidifying pan
• Full colour LCD touchscreen for intuitive operation and data logging via USB

Key benefits

• Optimised cell growth via outstanding chamber stability
• Reduced contamination risk through continuous antimicrobial measures
• Scalable 230 L capacity suitable for R&D, clinical and production environments

Operation and usability
Designed for busy laboratories: glove-friendly touchscreen, rounded interior corners and integrated shelf supports for quick and easy cleaning. Stable conditions and rapid recovery minimise downtime and support uninterrupted experiments.

Technical specifications

• Model: MCO-233AICUV-PE
• External dimensions (W x D x H): 770 x 730 x 905 mm
• Internal dimensions (W x D x H): 643 x 523 x 700 mm
• Volume: 230 L
• Net weight: 80 kg
• Temperature control range & fluctuation: AT +5 ~ +50 °C, ±0.1 °C
• Temperature uniformity: ±0.25 °C
• CO₂ control range & fluctuation: 0 ~ 20 %, ±0.15 %
• Humidity level & fluctuation: 95 % RH, ±5 %
• H₂O₂ decontamination: Optional
• Temperature sensor: Thermistor
• CO₂ sensor: Dual IR
• Display: LCD Touch Screen
• Exterior material: Painted steel (rear cover not painted)
• Interior material: Stainless steel copper-enriched alloy (InCu-saFe)
• Insulation: Expandable styrene-acrylonitrile beads
• Heating method: Direct Heat & Air Jacket System
• Outer door: 1 (with electric door lock and password - standard)
• Field reversible door: Included
• Inner door: 1 gas-tight tempered glass inner door
• Shelves: 4 x stainless steel copper-enriched alloy (shelf dimensions: 620 x 450 x 12 mm)
• Max. load per shelf: 7 kg
• Max. shelf capacity: 10
• Access port: 1, position: rear, diameter: 30 mm
• Alarms: Power failure (V-B-R), Out of temperature setting (V-B-R), High temperature (V-B-R), Out of CO₂ setting (V-B-R), Door open (V-B)
• Power supply: 230 V, 50 Hz
• Noise level: 25 dB
• Standard options: SafeCell UV® system
• Optional decontamination accessories: H₂O₂ decontamination board (MCO-170HB-PE), H₂O₂ vapor generator (MCO-50HP-PW), H₂O₂ reagent pack (MCO-20H2O2-PE)
• Optional gas and calibration accessories: CO₂ gas pressure regulator (MCO-010R-PW), Automatic CO₂ cylinder changeover system (MCO-21GC-PW), Semi-automatic one-point gas calibration kit (MCO-SG-PW)
• Optional shelving/accessories: InCu-saFe shelf (MCO-230ST-PW), half tray system (MCO-35ST-PW), double stacking bracket (MCO-170PS-PW), stacking plate (MCO-230SB-PW), roller base (MCO-230RB-PW)
• Optional communication: Analogue interface (4-20mA), Modbus interface (MTR-MODB1-PW), OPC-UA interface (MTR-OPC1-PW)
