High speed train bogie 68-7047

1520 mmdisc brake

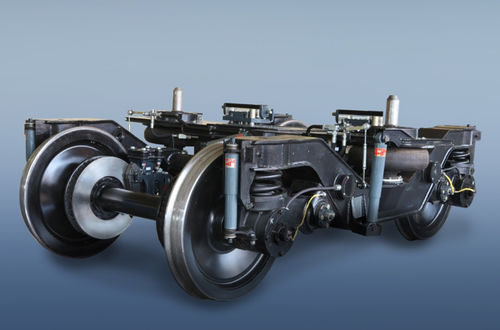

Two-axle bogie mod. 68-7047 is designed for installation on high-speed passenger cars of international traffic operating on 1520 mm gauge railways with a construction speed of 160 km/h, with two brake discs. The bogie is designed in accordance with the standards and operating conditions of the rolling stock on 1520 mm gauge railways and the operating standards of the upper structure of the railway track. The bogie is equipped: - central suspension (2 air springs with two vertical and one horizontal shock absorber); - axle box suspension (4 sets of double coil springs with four vertical hydraulic shock absorbers); - anti-slip device; - 2 multi-couplings to ensure quick connection of car life support systems when changing bogies; - main beam of load-bearing type; - wheel sets equipped with two brake discs; - magnetic rail brake; - mechanism for recording the temperature conditions of axle boxes. TECHNICAL CHARACTERISTICS - Mass, kg: 6 600 - Bogie height under unequipped coach, mm: 994±15 - Base, mm: 2560 - Track width: 1520 - Summary static deflection, mm: 350 - 450 - Maximum static load from wheel set on rail, kN(tf): 166,7 (17,0) - Design speed, km/h: 160 - Overall dimensions according to DSTU Б.В.2.3.-29: 02-ВМ - Designated service life of the main load-bearing elements of the bogie, years: 40
