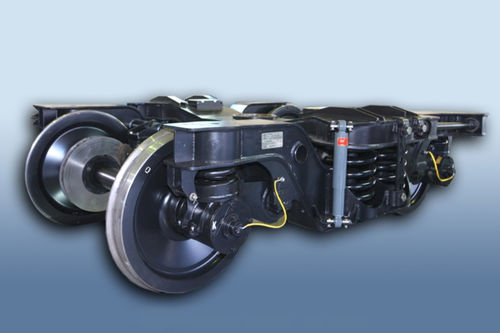

Intercity train bogie 68-7115

1520 mm

The two-axle bogie cradle-free type with central spring suspension and its modifications are intended for installation under passenger cars of locomotive traction and non-motorized cars of electric trains that operate on 1520 mm gauge railroads, with an operating speed of 160 km/h and a gross weight of up to 72 tons. It ensures the safe movement of passenger cars on the rail with the necessary speed, smoothness, and minimal resistance. The bogie-carriage connection units are unified with bogies manufactured by Tver Carriage Works OJSC, ensuring interchangeability with existing bogies produced by TCW OJSC. - TECHNICAL CHARACTERISTICS - Mass, kg: 7,260 - Bogie height under unequipped coach, mm: 990 - Base, mm: 2,560 - Track width, mm: 1,520 - Summary static deflection, mm: 295 - Maximum static load from wheel set on rail, kN (tf): 176.5 (18.0) - Design speed, km/h: 160 - Overall dimensions according to DSTU Б.В.2.3.-29: 1-ВМ - Designated service life of the main load-bearing elements of the bogie, years: 40
