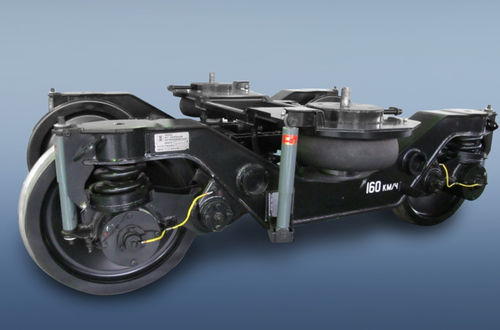

Intercity train bogie 68-7041

1520 mmUIC2-axle

Two-axle bogie mod. 68-7041 is designed for installation on passenger cars operating across the entire network of railways with a gauge of 1520 mm with a design speed of up to 160 km/h. The bogie is designed in accordance with the standards and operating conditions of the rolling stock on the CIS railways and the operating standards of the railways upper structure. The method of attaching the bogie to the car is similar to the bogie of model 68-7007/7012 (Manufacturer PJSC "Kryukovsky Railway Car Buildings Works"). - The bogie is equipped: - axle box suspension (4 sets of double coil springs with 4 vertical hydraulic shock absorbers); - central suspension (2 air springs with two vertical shock absorbers and one horizontal shock absorber); - anti-slip device; - lateral vibration damping mechanism (torsion device); - main beam; - mechanism for recording the temperature conditions of axle boxes. TECHNICAL CHARACTERISTICS - Mass, kg: 6 700 - Bogie height under unequipped coach, mm: 1019±15 - Base, mm: 2560 - Track width, mm: 1520 - Summary static deflection, mm: 316 - Maximum static load from wheel set on rail, kN (tf): 176,5 (18,0) - Design speed, km/h: 160 - Overall dimensions according to DSTU Б.В.2.3.-29: 02-ВМ - Designated service life of the main load-bearing elements of the bogie, years: 50
