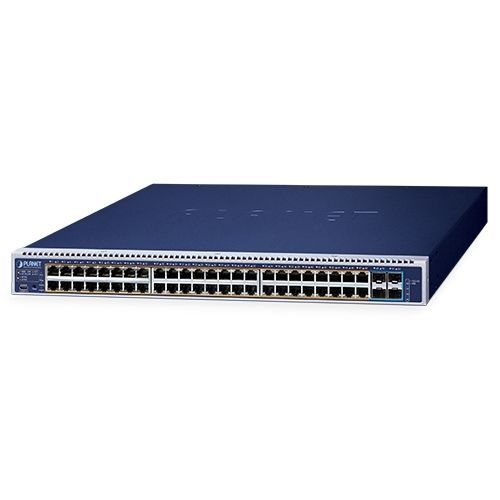

Managed ethernet switch GS-6322-48UP4X

48 portslayer 2gigabit

Powerful 802.3bt PoE++ Managed Switch with Extremely Large Power CapabilityPLANET GS-6322-48UP4X Fully-managed 802.3bt PoE++ Switch with dual modular power supply slots expandability promotes power management efficiency and flexibility in large-scale networks, such as enterprises, hotels, shopping malls, government buildings, and other public areas. It supports rich PoE operation modes including 48 95-watt 802.3bt type-4 PoE++ ports, mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field. With a total power budget of up to 3200 watts for different kinds of heavy PoE applications, the GS-6322-48UP4X provides a quick, safe and cost-effective 802.3bt PoE network solution for small businesses and enterprises.Extractive Power Supply Design to Increase FlexibilityThe GS-6322-48UP4X is designed with two extractive power module slots to support Redundant Power Supply (RPS) mode or Extended Power Supply (EPS) mode via software setting to handle the demands of power redundancy or additional power for PoE++ ports as needed.RPS (1+1) mode: Where critical services are supported by PoE application, the secondary PSU is needed to provide backup power in the event of a power outage. When two PSUs are installed, the power budget is the same as that of one PSU.EPS (2+0) mode: Where more PoE budget is required to support complete application, the secondary PSU can provide additional PoE power. The two PSUs combined are able to provide a maximum of total PoE power.The GS-6322-48UP4X can work with three optional 920W/1200W/2000W AC power supplies. Users can flexibly use single or dual power supply according to their application. Its flexible redundant and extended power system is specifically designed for high-tech facilities requiring the highest power integrity.PSU Operation modeRedundant Power Supply modeExtended Power System modePower Redundancy■--PoE budget with 1 2000W PSU1600W1600WPoE budget with 2 2000W PSUs1600W3200W90~95-watt 802.3bt PoE++ and Advanced PoE Power Output Mode ManagementAs the GS-6322-48UP4X adopts the IEEE 802.bt PoE++ standard, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). To meet the demand of various powered devices consuming stable PoE power, the GS-6322-48UP4X PoE++ Switch provides five different PoE power output modes for selection.95W UPOE90W 802.3bt PoE++60W Force36W End-span PoE36W Mid-span PoE10GBASE-X SFP Dual Media InterfacesThe GS-6322-48UP4X features a built-in hardware-based L2 and L3 switching engine along with 48 10/100/1000BASE-T ports and 4 additional 10GBASE-X SFP+ ports. The four 10GBASE-X SFP+ interfaces with 3 speeds (10G/2.5G/1G) are provided for long-distance transmission of up to 120km.Layer 3 Routing SupportThe GS-6322-48UP4X enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, and the IPv4 OSPFv2 (Open Shortest Path First) settings automatically. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches and then uses the Shortest Path First algorithm to generate a route table based on that database.Redundant Ring, Fast Recovery for Critical Network ApplicationsThe GS-6322-48UP4X supports redundant ring technology and features a strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 10ms.Convenient and Smart ONVIF Devices with Detection FeatureThe GS-6322-48UP4X supports an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with Video IP Surveillances. From its GUI, clients just need one click to search and show all of the ONVIF devices via network application. In addition, clients can upload floor images to a switch, and it allows you to deploy any surveillance devices for easier inspection and planning. Moreover, clients can get real-time surveillance information and online/offline status, and also allows PoE reboot control from GUI.Built-in Unique PoE Functions for Powered Devices ManagementBeing the managed PoE switch for surveillance, wireless and VoIP networks, the GS-6322-48UP4X features the following special PoE management functions:PD alive checkScheduled power recyclingPoE schedulePoE usage monitoringIntelligent Powered Device Alive CheckThe GS-6322-48UP4X can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responds, the GS-6322-48UP4X will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing the burden of administrator management.Scheduled Power RecyclingThe GS-6322-48UP4X allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, they will reduce the chance of IP camera or AP crash resulting from buffer overflow.PoE Schedule for Energy SavingsUnder the trend of energy savings worldwide and contributing to environmental protection, the GS-6322-48UP4X can effectively control the power supply besides their capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.Robust Layer 2 FeaturesThe GS-6322-48UP4X can be programmed for advanced Layer 2 switch management functions such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control, IGMP snooping and MLD snooping. Via the aggregation of supporting ports, the GS-6322-48UP4X can operate at high speed as it comes with multiple ports and supports fail-over as well.Powerful Network SecurityThe GS-6322-48UP4X offers a comprehensive Layer 2 to Layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.Advanced IP Network ProtectionThe GS-6322-48UP4X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attacking and discard ARP packets with invalid MAC addresses. The network administrator can now construct highly secure corporate networks with considerably less time and effort than before.Efficient ManagementFor efficient management, the GS-6322-48UP4X is equipped with console, Web and SNMP management interfaces.With the built-in Web-based management interface, it offers an easy-to-use, platform-independent management and configuration facility.For text-based management, it can be accessed via Telnet and the console port.For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.Intelligent SFP/SFP+ Diagnosis MechanismThe GS-6322-48UP4X supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.Physical Ports: 48 10/100/1000BASE-T Gigabit RJ45 copper ports with IEEE 802.3bt PoE++ injector function, 4 10GBASE-SR/LR SFP+ slots, USB Type C console interfacePoE: Complies with IEEE 802.3bt PoE++, backward compatible with IEEE 802.3at, up to 48 ports powered, 95W injector function, auto detects PD, circuit protection, remote power feeding up to 100m, PoE management features (budget control, per port enable/disable, admin-mode, priority, power limit, classification, extend mode), intelligent PoE features (temperature threshold, usage threshold, PD alive check, schedule)Layer 3: Supports RIPv2, OSPFv2/v3, IPv4/IPv6 static routing, per VLAN routing, up to 128 VLAN interfaces and routing entriesLayer 2: Store-and-Forward, VLAN (802.1Q, Q-in-Q, private, protocol/MAC/voice), Spanning Tree (STP, RSTP, MSTP), Link Aggregation (LACP, static trunk), port mirroring, loop protection, ERPS, LLDPQoS: Ingress/Egress bandwidth control, 8 priority queues, traffic classification (802.1p, TOS/DSCP, IP precedence, TCP/UDP port), strict priority and WRR, DSCP remarkingMulticast: IGMP snooping v1/v2/v3, MLD snooping v1/v2, querier mode, port filtering, MVRSecurity: 802.1x port/MAC-based authentication, RADIUS/TACACS+, guest VLAN, ACL (IP/MAC), DHCP snooping, ARP inspection, IP source guard, access managementManagement: IPv4/IPv6 dual stack, console/Telnet/Web/SNMP, SSHv2, TLSv1.2, SNMP v3, RMON, NTP, TFTP, DHCP relay/server, user privilege, cable diagnostics, syslog, smart fanPower Management: Dual redundant modular slots, RPS/EPS modes, active-active protection, fault toleranceHardware: 444x331x44mm, 5478g, 3 smart fans, ESD 6KV, max. 3361W power consumption (full load), up to 3200W PoE budget
