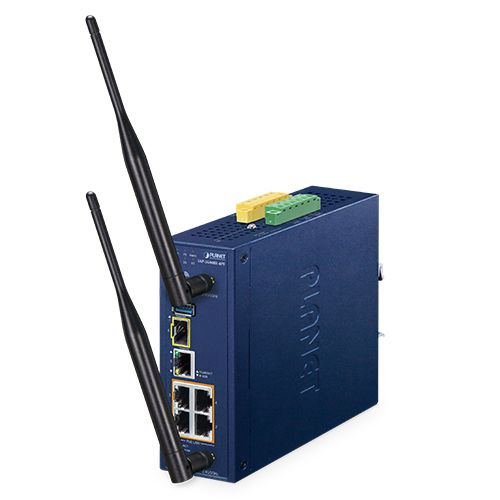

QAM access point IAP-3600BE-4PF

LANWANSFP

The PLANET IAP-3600BE-4PF Industrial Dual Band 802.11be Wireless Access Point comes with 5 × 10/100/1000T LAN ports. The IAP-3600BE-4PF model features 4 × 1000T 802.3at PoE LAN ports with a total PoE budget of 120 watts, and 1 × 1GBASE-X SFP WAN/LAN slot for flexible connectivity. Both models feature a rugged IP30-rated metal enclosure, ensuring robust performance in harsh industrial environments. Integrated with Wi-Fi 7 (802.11be) technology, the IAP-3600BE-4PF delivers exceptional wireless speeds of up to 2882 Mbps on the 5GHz band and 688 Mbps on the 2.4GHz band. It supports advanced wireless capabilities including 4096-QAM, Multi-Link Operation (MLO), MU-MIMO, MU-OFDMA, and beamforming, enabling lower latency, greater bandwidth efficiency, and highly stable multi-user connections. Supporting up to 256 concurrent client devices, the IAP-3600BE-4PF is the ideal wireless solution for mission-critical industrial applications requiring ultra-fast, reliable, and secure connectivity Designed to operate in extreme environments, the IAP-3600BE-4PF supports a wide temperature range from -40 to 70 degree C, making it ideal for deployment in harsh and demanding conditions. It also features flexible installation options with both DIN rail and wall-mount support, maximizing space efficiency within industrial cabinets High-Performance Dual Band Wi-Fi 7 Solution The IAP-3600BE-4PF, compliant with the latest IEEE 802.11be Wi-Fi 7 standard, delivers ultra-high-speed and low-latency wireless connectivity. It supports maximum data rates of up to 688Mbps on the 2.4GHz band (40MHz) and 2882Mbps on the 5GHz band (160MHz), enabling lightning-fast transmission across both frequency bands
