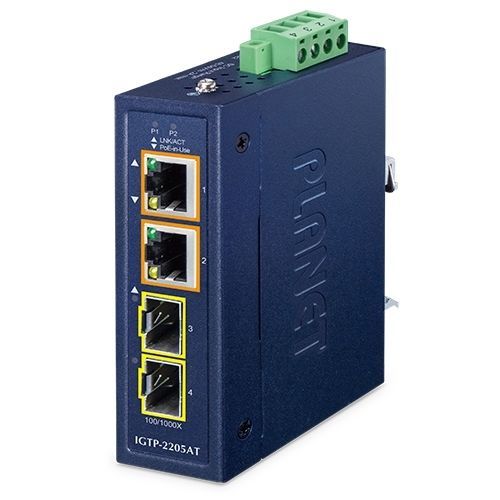

Speed converter IGTP-2205AT

mediatemperaturesplitter

Ruggedly Built for Harsh EnvironmentsPLANET IGTP-2205AT is the smallest, industrial-grade Gigabit PoE+ Media Converter, featuring two 100/1000BASE-X SFP fiber ports and two 10/100/1000BASE-T 802.3at PoE+ copper ports in an IP30-rated rugged but compact-size case. Able to operate under temperatures from -40 to 75°C, it provides reliable, stable, and continuous long-range data transmission and can be installed in any harsh environment without taking space into consideration.As the trend for IIoT (Industrial Internet of Things) infrastructure grows, the IGTP-2205AT is designed to simplify industrial network deployment with its Plug and Play feature. It offers stable and reliable fast data and power transmission, aligning with the AIoT (Artificial Intelligence of Things) concept by enabling seamless integration of intelligent systems. This allows the collection and analysis of valuable data, empowering real-time decision-making and enhancing operational efficiency across various industrial applications.IEEE 802.3at PoE PlusComplying with the IEEE 802.3at Power over Ethernet Plus (PoE+) standard, the IGTP-2205AT forwards Gigabit speed Ethernet data transmission and provides a total 60-watt power budget with a maximum of 30-watt power output per port over an additional 100m UTP cable to an 802.3af/at PoE PD (powered device) installed in a remote area where sufficient and reliable power input is required. Users can easily upgrade their current networks without the need for software configuration.Fiber-optic Link Capability Extends the Range of Network DeploymentThe maximum distance between a PoE PSE (power sourcing equipment) and a PD via Ethernet UTP cable is 100 meters. To flexibly extend the PoE deployment range, the IGTP-2205AT’s SFP slot supporting 100BASE-FX/1000BASE-X, SFP modules, and more can reach a transmission distance of up to 120km or 240km with Daisy-Chain topology.Dual Power Input for High Availability Network SystemThe IGTP-2205AT features a strong dual power input system with wide-ranging voltages (48V~54V DC) incorporated into customer’s automation network to enhance system reliability and uptime. When Power Supply 1 fails, the hardware failover function will be activated automatically to keep powering the IGTP-2205AT via Power Supply 2 without any break of operation.Environmentally Hardened DesignThe IGTP-2205AT is specifically designed with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets. With a wide operating temperature range of -40 to 75°C, the IGTP-2205AT is ideal for service providers, campuses, and public areas to deploy outdoor PoE wireless access points, outdoor IP cameras, or IP phones in any places easily and efficiently.Robust ProtectionThe IGTP-2205AT provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, ensuring uninterrupted operation.Flexible and Easy Installation with Limited SpaceThe compact sized IGTP-2205AT is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, making its usability more flexible and easier in any space-limited location.Flexible and User-friendly PoE Deployment with Gigabit Fiber ExtensionFor places difficult to find a power outlet, the IGTP-2205AT provides the easiest way to power network equipment such as PTZ (Pan, Tilt & Zoom) IP cameras, speed dome IP cameras, color touch-screen VoIP telephones, multi-channel (IEEE 802.11a/b/g/n/ac) wireless LAN access points, and other network devices that need higher power to function normally.Users can flexibly install security IP cameras, wireless access points, and other IEEE 802.3af/at compliant network equipment in public areas such as stations, freeways, airports, and campuses for surveillance and wireless roaming needs.Key FeaturesPhysical Port2-port 10/100/1000BASE-T RJ45 with IEEE 802.3at PoE+ injector functionTwo SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver dual modePower over EthernetComplies with IEEE 802.3at PoE Plus end-span PSE2 IEEE 802.3at/af device poweredSupports PoE Power up to 30 watts for PoE portProvides DC 48~54V power over RJ45 Ethernet cable to PD with Ethernet portAuto detects IEEE 802.3at/af equipment and protects devices from being damaged by incorrect installationRemote power feeding up to 100mIEEE 802.3at/af PoE splitter devices compatibleLayer 2 FeaturesSupports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode on RJ45 portPrevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)PROFINET Traffic Pass-through with QoSIndustrial Case and InstallationIP30 metal caseDIN-rail and wall-mount designs48V~54V DC power with reverse polarity protectionConnective removable terminal blockSupports 6000 VDC Ethernet ESD protection-40 to 75°C operating temperatureFree fall, shock-proof and vibration-proof for industriesSpecificationsCopper Port: 2 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports with PoE injector functionSFP Port: 2 x 1000BASE-SX/LX/BX SFP interfaces (compatible with 100BASE-FX SFP)Flow Control: Back pressure for half duplex mode, IEEE 802.3x pause frame for full duplex modeMaximum Frame Size: 9KLED: System: P1/P2 (Green), Fiber 100/1000BASE-X: LNK/ACT (Green), TP 10/100/1000BASE-T: LNK/ACT (Green), PoE: Power-in-use (Amber)Dimensions (W x D x H): 30 x 70 x 104 mmWeight: 260 gPower Requirements: DC 48~54V, redundant power with reverse polarity protection function (>51V DC for PoE+ output recommended)Power Consumption: System ON without loading: DC 48V: 1.44W/4.91BTU, DC 54V: 1.62W/5.53BTU; Full loading with PoE: DC 48V: 81.6W/278.43 BTU, DC 54V: 82.1W/280.14 BTUEnclosure: IP30 metal caseInstallation: DIN-rail kit and wall-mount kitESD Protection: 6KV DCCables: 10/100/1000BASE-T: 2-pair UTP Cat. 3, 4, 5, 5e, 6 (max 100 meters), EIA/TIA-568 100-ohm STP (max 100 meters); 100BASE-FX/1000BASE-SX/LX: Multi-mode: 50/125μm or 62.5/125μm optical fiber, Single-mode: 9/125μm optical fiberPoE Standard: IEEE 802.3at Power over Ethernet PlusPoE Power Output: 48~54V DC: 30 watts per portPoE Power Supply Type: End-spanPower Pin Assignment: 1/2(+), 3/6(-)PoE Power Budget: 60 wattsRegulatory Compliance: FCC Part 15 Class A, CEProtocols and Standards Compliance: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet over Fiber Optic, IEEE 802.3x Flow Control, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet PlusStability Testing: IEC60068-2-32 (free fall), IEC60068-2-27 (shock), IEC60068-2-6 (vibration)Temperature: Operating: -40~75°C, Storage: -40~85°CHumidity: Operating: 5~90% (non-condensing), Storage: 5~90% (non-condensing)
