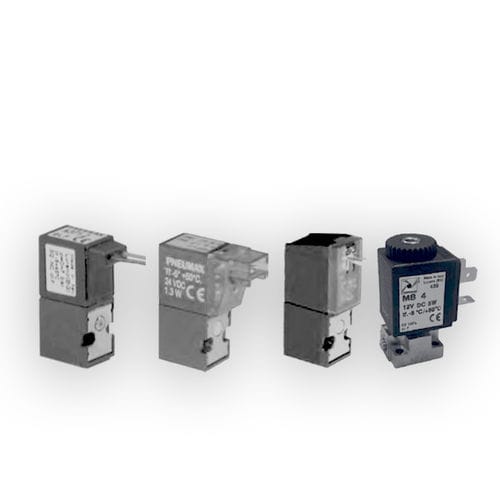

Direct-operated solenoid valve 300 series
3-wayNCNO

direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
direct-operated solenoid valve
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
3-way
Function
NC, NO
Medium
air
Body
miniature, manifold
Temperature

Min.: -5 °C (23 °F)

Max.: 50 °C (122 °F)

Pressure

Min.: 0 bar (0 psi)

Max.: 7 bar (101.5 psi)

DN

Min.: 0.7 mm (0.028 in)

Max.: 1.1 mm (0.043 in)

Voltage

Min.: 12 V

Max.: 24 V

Description

DIRECT OPERATD SOLENOID VALVES The direct operated solenoid valve is the interface between pneumatic and electronic. Direct operated solenoid valves 2/2, 3/2 General This sériés of directly operated vales is characterized by its reduced dimensions. They are designed to be mounted individually or on manifold. The high operating speed and high flow rate in considération of the reduced dimensions, in combination with the high compatibility of the material used to manufacture them ensure a high variety of possible application fields. Ail valves hâve manual override as standard and are available in 3/2 configuration N.O. and N.C. as well as 2/2 N.C. both 12 or 24 V DC or AC. Electrical connection can be via co moulded cables or via connector, in this configuration a LED indicates the coil status. Ensure that the fixing screws are tightened with 0.15Nm maximum. The 10mm Speed-up version are built in accordance to the IS015218-2003 standard with a flow rate of 24NI/min. The coil intégrâtes a dedicated circuit board which enables to contain the power consumption to 0.35W in case of the high flow rate version and to 0.1W in case of the standard flow rate version. Construction characteristics: Electrlcal part: Miniature solenoid consisting of a coil made of copper wire of different diameters depending on voltage,isolated according to "F" class standard, with injection-moulded nylon-glass application. Ail parts forming the cladding, the electrical connections and the pôle pièces are protected against corrosion. Mechanical part: Stainless Steel 430F armatures FPM poppets body in thermoplastic material and manual override and plug in nickel plated brass.
