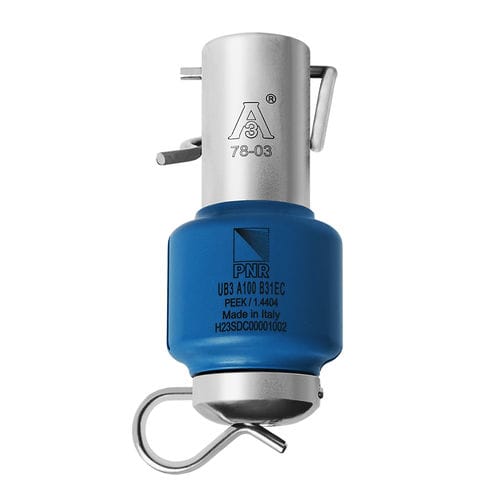

Cleaning nozzle UB3 A series

washingfor liquidsstainless steel

The rotating tank cleaning nozzle UB3 A is a 3-A certified washing device according to standard 78-03, the US regulation governing the design and production of equipment intended for food contact. The UB3 A washing devices are made of stainless steel AISI 316L EN 1.4404 and PEEK + 10% PTFE (only for the rotating element). This material ensures excellent mechanical characteristics and sliding properties. The cleaning equipment is suitable for use with products commonly used in CIP (Clean-In-Place) processes and compatible with AISI 316L and PEEK. It cannot be used with fluids or substances that could be aggressive towards AISI 316L and PEEK. The main application of the UB3 A is tank washing in the general food industry, particularly in the dairy and beverage sectors. This intended use and compliance with the 3-A standard determine two fundamental characteristics of the UB3 A: ease of assembly and disassembly and self-cleaning of internal parts. EASE OF ASSEMBLY AND DISASSEMBLY The assembly and disassembly phases of the UB3 A are simple and immediate. This ensures the possibility of cleaning and sterilizing all head components whenever necessary. SELF-CLEANING OF INTERNAL PARTS The internal geometries of the device ensure self-cleaning. The head must be installed vertically because horizontal installation does not guarantee complete emptying of the device. The UB3 A can have four flow rates: 100 litres, 75 litres, 50 litres, and 40 litres, all referenced for use at a pressure of 3 bar, the recommended operating pressure by PNR Italia.
