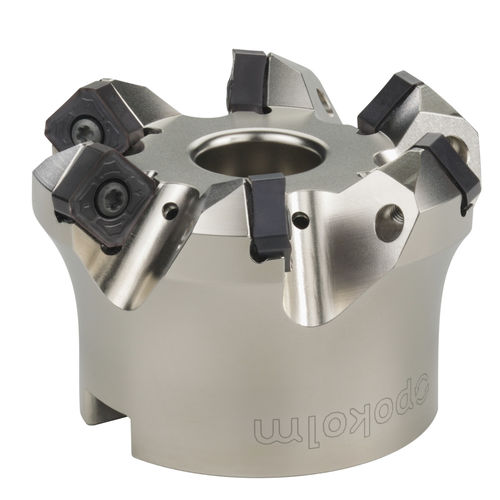

Shell-end milling cutter PLANWORX®insertroughingfinishing

shell-end milling cutter
shell-end milling cutter
shell-end milling cutter
Add to favorites
Compare this product
indicative price

Characteristics

Geometry
shell-end
Construction
insert
Type
roughing, finishing, face
Material
coated
Treated material
for steel, for cast iron, for titanium
Other characteristics
cutting edge, high-efficiency, cutting
Diameter

Min.: 40 mm (1.57 in)

Max.: 250 mm (9.84 in)

Length

42 mm, 52 mm (1.65 in)

Description

PLANWORX* the face-milling cutter for medium and rough machining of Steel, cast material and RSH mate-rial. Available in sizes from diam. 40 to 250 mm face diam-eter. Résonance vibrations are eliminated by using adapted uneven partitions. Extremely well suited to working conditions lacking stability with maximum chipping depths of up to 6.5 mm and for chamfer cutting angles up to approxi-mately 45°. Feed holes for the internai supply of coolant are provided in ail tools up to and induding diam. 125 mm. The new tool has been designed for high-efficiency cutting with large cutting depths and an extreme smoothness. The coated and hardened base body offers longevity and a maximum of tooth stability even under extreme loads. EIGHT cutting edges to each cutting insert, of 13 mm incirde and a spécial macro-geometry with face cutters of 2.4 mm length make the tool suitable for universal use in ail areas. 5.4 mm effective plate thickness increases the enormously high process reliability and protects the support. Matching micro-geometries with polished chipping areas help keep températures in the cutting material at a minimum and en-sure uniform disposai of chips. Precision-made cutting inserts in grades: K10, P40 and M40 with adapted chip breakers and improved coatings provide extremely low-cost solutions in terms of the number of cutting edges and the service life. Each cutting edge is marked for ease of orientation and enables a high speed of installation. Exactly manufactured insert mounts in combination with fastening screw with Torx Plus drive hold the insert exactly in its mounted position.
