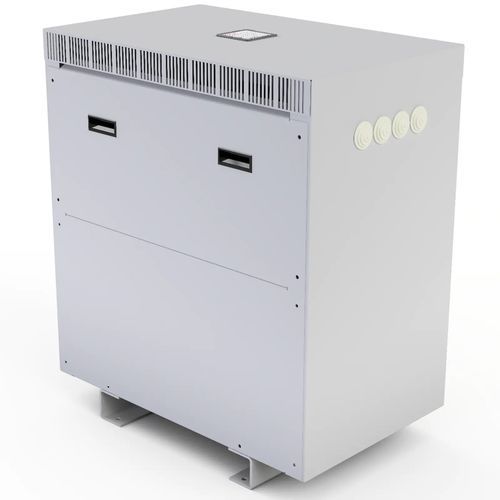

Dry transformer TTFW seriespowersolarthree-phase
Add to favorites
Compare this product
Characteristics
- Type
- power
- Configuration
- dry
- Applications
- solar
- Electrical characteristics
- three-phase
- Mounting
- floor-standing
- Norms
- IEC
- Other characteristics
- protection, custom, reduction
- Output power kVA
Max.: 1,000 kVA
(1,359.621155 hp)Min.: 0.63 kVA
(0.856561 hp)- Primary voltage
800 V
- Secondary voltage
400 V
- Frequency
50 Hz, 60 Hz
Description
APPLICATIONS
_____________________________
TTF transformers are used for galvanic isolation of three-phase solar installations.
They are also used in the generation of ground-referenced neutrals.
FEATURES
_____________________________
Dry type transformer.
All transformers are tropicalized with anti-flash varnish:
• Protection against corrosive environments.
• Greater electrical insulation.
• High compaction power.
• Noise level reduction.
• Longer life span of the product.
• (IP-23 enclosure, metal box painted with RAL 7035 polyester resin (cat. C4 ISO 12994-2).)
Tailor made, if the standard specifications are not what is required.
AVAILABLE ACCESSORIES
_____________________________
One, two and up to three electrostatic screens.
Class II.
Wheel
PT100, PTC or Bimetallic probes.
C5 paint.
Several RAL
Electric temperature panel.
Anti-condensation system.
IP up to IP-65.
