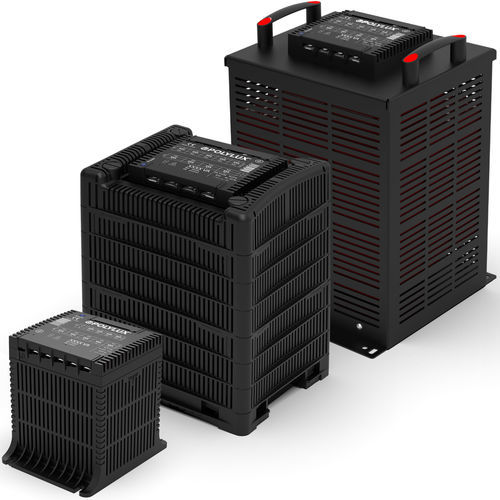

Isolation transformer PD seriespowerdryinterior
Add to favorites
Compare this product
Characteristics
- Type
- power, isolation
- Configuration
- dry
- Applications
- industrial, for industrial applications, for indoor service, for industrial use, interior, for machinery, for machine tools
- Electrical characteristics
- single-phase, low-voltage
- Mounting
- DIN rail mount, surface-mount, plastic housing, bench-top
- Norms
- IEC, EN61558, UL
- Protection level
- IP20
- Other characteristics
- protection, safety, control, flameproof
- Output power kVA
Min.: 0.04 kVA
(0.054385 hp)Max.: 5 kVA
(6.798106 hp)- Primary voltage
230 V, 400 V, 460 V
Min.: 230 V
Max.: 460 V
- Secondary voltage
12 V, 24 V, 48 V, 115 V, 230 V
Min.: 12 V
Max.: 230 V
- Frequency
50 Hz, 60 Hz
Description
APPLICATIONS
_____________________
The P, Q and N transformers are specially designed to isolate and adapt voltages in control and operation applications in both domestic and industrial environments as well as in switchboards / panels.
Another important application is the galvanic insulation of installations for safety reasons, as well as the generation of earth-referenced neutrals.
FEATURES
_____________________
Dry type transformer
IP-20 enclosure:
Includes LED functioning indicator.
Full rating at all outputs.
Voltage selection through metallic bridges (included).
Possibility of custom-made manufacturing.
