Pallet racking

pickinghandlingcombined

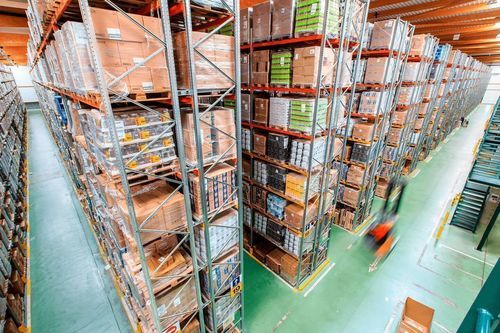

Adjustable pallet racking is a storage system designed for palletised loads and containers, providing direct unit access to each pallet. It enables straightforward assembly, efficient use of space and can be tailored to existing handling equipment. Configurations include single-deep, double-deep and narrow-aisle layouts to optimise warehouse density.

Key features

• Designed for storage of palletised loads and containers with direct, unitary access to each pallet.
• Unit access improves picking and handling operations.
• Aisle widths defined according to the forklifts and handling equipment used.
• Expandable in height subject to forklift lift capacity and building free height.
• Load levels adjustable on a 50 mm pitch for easy reconfiguration.
• Can be configured as narrow-aisle or double-deep to increase storage capacity.
• Compatible with lower manual picking levels or accessories for order picking in aisles.

Typical configurations & illustrations

• Single-deep adjustable pallet racking (illustrated).
• Double-deep adjustable pallet racking (illustrated).

Available brochures

• Narrow aisle pallet racking brochure (PDF).
• Adjustable pallet racking brochure (PDF).

Safety elements & accessories

• Frame protection with lateral steel guard to absorb impacts from forklifts and protect rack frames.
• Upright protection elements (post protectors) for exposed ends and intersections.
• Side frame protection with wooden board to reduce impact damage at rack ends.
• Rear safety mesh to prevent goods falling into aisles, workstations or machinery.
• Back stop to prevent pallets from falling; can be combined with rear safety mesh for extra protection.

Technical specifications

• Pitch: 50 mm height adjustment.
• Finish options: painted or galvanized.
• Intended use: industrial storage of palletised loads and containers.
• Design and protection accessories according to EN 15512.
• Warranty: 5 years (as indicated on product page).
