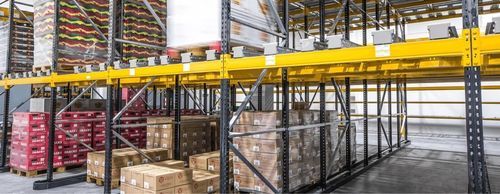

Pallet live storage systems from POLYPAL are compact racking solutions that use inclined roller lanes so pallets move downwards by gravity, enabling high-density, fast and organised pallet flow. They can be configured for FIFO (first-in/first-out) or LIFO (last-in/first-out) operation depending on storage and handling needs.

Operation modes

• FIFO: Pallets are loaded at the entry side and flow slowly and controlled along gravity lanes to the unloading point; ideal for perishable products that require perfect stock rotation. Loading and unloading use separate aisles to improve safety and throughput.
• LIFO: Loading and unloading occur from the same front aisle; pallets are pushed along rollers to fill lanes and removed in inverse order, maximising stored pallet quantity when only one aisle is used.

Features

• Compact system providing maximum load capacity per footprint.
• Optimised use of available volume, requiring a single loading aisle and a single unloading aisle (FIFO) or a single front aisle (LIFO), reducing the need for extra aisles.
• Low maintenance and no energy consumption (gravity-driven lanes).
• Lower operating costs due to reduced labour and fewer forklift movements.

Security elements and protections

• Upright protection elements to shield frames from impacts (design and features according to UNE-EN 15512).
• Side frame protection options (guard rail or timber board) to prevent accidental forklift collisions.

Technical specifications

• System type: Pallet live (gravity) storage with roller lanes and predefined inclination.
• Operation: Configurable for FIFO or LIFO.
• Application: Palletised loads; suitable for industrial warehouse storage and for perishable product rotation (FIFO recommended).
• Advantages: High density, improved stock rotation (FIFO), maximised stored pallets (LIFO), reduced aisles, lower energy and maintenance needs.
• Typical finishes: Painted finish, Galvanized finish.
• Design/pitch: 50 mm pitch (adjustable positions).
• Additional services/elements: Technical inspection service available; upright and frame protection accessories.
• Warranty: 2 years indicated for the range.
