Storage warehouse shelving

handlingmulti-storagewith shelves

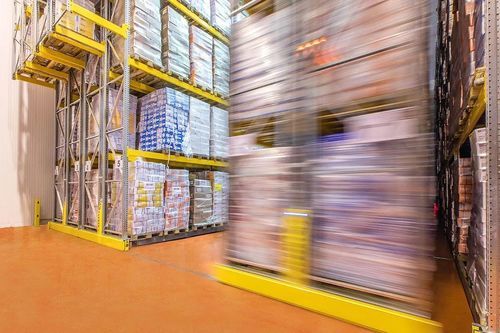

The POLYPAL mobile pallet racking system consists of pallet racking mounted on motorised mobile bases that run on rails embedded in the slab, enabling very high-density palletised storage with configurable single-aisle access.

Operation and control
The system opens a single working aisle on demand via remote control or front-panel buttons. Movement is performed by electric synchronous motors with progressive acceleration and braking controlled by a frequency inverter to ensure smooth, controlled displacement.

Features

• Single-aisle access provides entry to all pallets or loads from one opened aisle.
• Compatible with standard counterbalance, reach and conventional forklifts; no specialised handling equipment required.
• Maximises usable warehouse volume — ideal where floor cost is high or where capacity must be increased without expanding the building (suitable for cold rooms/freezers).
• Modular: can be fitted with adjustable pallet racking, shelving or cantilever systems to suit different load types and storage needs.

Construction and components

• Platforms consist of wheel chassis (motorised or passive) and beams with hot-rolled laminated profiles for high impact resistance.
• Each chassis incorporates an individual safety device; combined with general site safety systems and a central computerized controller, this prevents accidents during warehouse operations.
• Available with painted or galvanized finishes and standard 50 mm pitch compatibility.

Characteristics / technical specifications

• System type: Mobile pallet racking on motorised mobile bases running on rails embedded in slab.
• Access: Single-aisle opening on demand (remote control or front-panel buttons).
• Drive: Electric synchronous motors with frequency inverter for controlled acceleration/braking.
• Compatibility: Operable with standard forklifts (no special handling equipment required).
• Modularity: Can mount adjustable pallet racking, shelving or cantilevers depending on application.
• Platform components: Wheel chassis (optionally motorised); hot-rolled laminated profile beams.
• Safety: Individual chassis safety systems plus general installation safety and central computerized control.
• Intended use: Palletised loads; industrial warehouses seeking maximum space utilisation; suitable for refrigerated/frozen environments.
• Finishes & pitch: Painted or galvanized finishes; 50 mm pitch.

Documentation

• Available documentation: Mobile pallet racking brochure and Pallet racking brochure (PDF).
