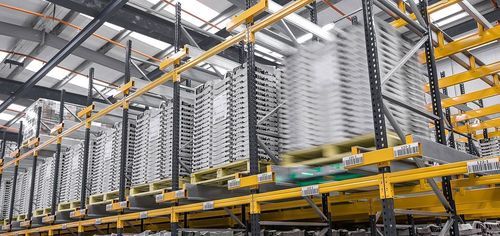

Compact shuttle storage system

This automated pallet shuttle racking system (Shuttle) provides a compact, high-density storage solution for industrial warehouses. A remotely controlled shuttle moves loaded pallets along rails into the correct positions inside the rack while the forklift loads/unloads at the lane entrance, preventing the forklift from entering the lane and improving operator safety.

Features

• Fully automatic internal pallet movement by remote-controlled shuttle, reducing handling times compared with standard compact systems.
• Electronic management of collection and deposit functions for precise placement.
• Fast and safe pallet handling that minimises collision risk between forklift trucks and rack structure inside lanes.
• Shuttle operation frees the forklift operator to perform other tasks during loading/unloading cycles.
• Ability to assign each SKU/reference to specific lanes for organised storage and easier stock control.
• Configurable for FIFO or LIFO flows depending on site requirements.
• Optimises use of available storage volume: one access aisle for LIFO blocks, two access aisles for FIFO blocks.

Security elements

• Side frame protection with guard rail to protect uprights from accidental truck impacts.
• Side frame protection with wood board as an alternative lateral protection solution.
• Perimeter guarding to prevent personnel access to machine movement zones.

Applications and finishes

• Designed for industrial use in factories and warehouses handling palletised loads.
• Suitable for high-density pallet storage and compact racking layouts.
• Rack adjustability: 50 mm pitch for shelf positioning.
• Available finishes: painted or galvanized.
• Technical inspection services available for installation and commissioning.
• Warranty: 5 years.

Technical specifications

• System type: Automated pallet shuttle racking (Shuttle).
• Operation: Remote-controlled shuttle travels along rails inside lanes; forklift loads/unloads at lane entrance.
• Flow modes: Configurable for FIFO or LIFO.
• Aisle requirement: 1 access aisle for LIFO blocks; 2 access aisles for FIFO blocks.
• Electronic management of collection/deposit functions.
• Rack pitch: 50 mm increments.
• Finishes: painted or galvanized.
• Intended load: palletised loads.
• Warranty: 5 years (as stated).
