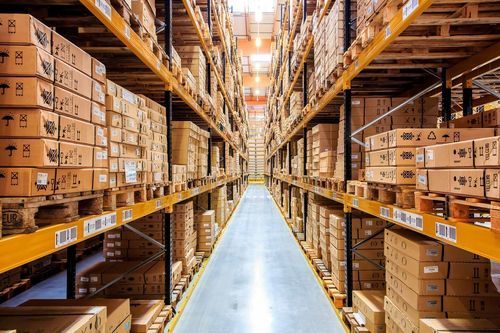

Storage warehouse shelving

multi-storagepalletnarrow-aisle

Adjustable pallet racking based on the APR system optimises warehouse footprint by reducing aisle widths and exploiting building height to increase pallet storage capacity. Designed for palletised loads and operation with specialised tower trucks, it supports handling heights up to 17 m.

Required guidance systems

• Rails anchored to the slab (can be supplied and installed by POLYPAL).
• Electronic detection/filo-guidance systems, to be supplied and installed by the truck manufacturer.

Safety elements

• Back stop to prevent pallets from falling; can be complemented by a rear safety mesh.
• Rear safety mesh preventing goods from falling onto aisles, workstations and machinery.

Technical specifications

• System base: APR system (adjustable pallet racking concept for narrow aisles).
• Suitable load type: palletised loads.
• Maximum recommended handling height: up to 17 m with appropriate tower trucks.
• Truck compatibility: compatible with tower trucks (man-up cab or ground operation with programmable positioning systems).
• Pitch: 50 mm step.
• Finish options: painted or galvanized.
• Designed for industrial/warehouse environments.

Services and warranty

• Technical inspection and racking inspection services available (POLYPAL).
• Warranty: 5 years (conditions apply).
