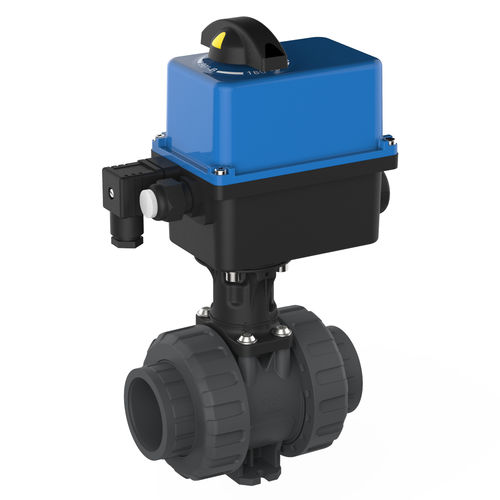

Ball valve M1
electrically-actuatedfor potable waterflange

ball valve
ball valve
ball valve
ball valve
ball valve
Add to favorites
Compare this product

Go to the Praher Plastics Austria GmbH website for more information

Characteristics

Type
ball
Operation
electrically-actuated
Media
for potable water
Body
flange, threaded, PTFE, EPDM, PVC-U
Number of channels
2-way
Other characteristics
ANSI, with positioner
DN

Max.: 80 mm
(3.15 in)

Min.: 10 mm
(0.394 in)

Pressure

16 bar
(232.1 psi)

Temperature

Max.: 60 °C
(140 °F)

Min.: 10 °C
(50 °F)

Flow rate

Max.: 7,600 l/min
(2,007.71 us gal/min)

Min.: 6.2 l/min
(1.64 us gal/min)

Description

Silicon-free Buttress thread for perfect fit of the union nut Integrated bracket for fix point mounting 4 adjustable limit switches Position indication Torque and force limiters Travel time 6–50 sec Duty cycle 30% Versions: Fail-safe 4–20 mA Positione Seal materials - EPDM, FPM Ball seating joint - PTFE Connections - flange, solvent socket, solvent spigot, threaded socket Approvals - KIWA NSF/ANSI/CAN 61, ACS
