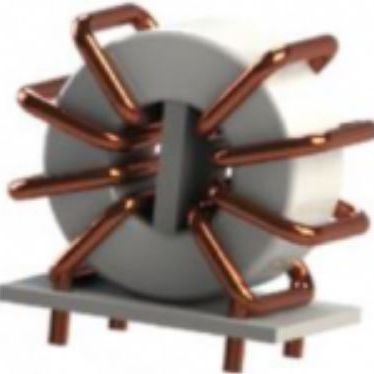

Wire-wound choke CMCN1R0-36VpowerDCSMD
Add to favorites
Compare this product
Characteristics
- Technology
- wire-wound
- Electrical characteristics
- power, DC
- Configuration
- SMD
- Applications
- for DC/DC converters, for EV charger
- Other characteristics
- copper
- Voltage
1,500 V
Description
Features
•High performance CMC using nanocrystalline core
•Optimized size for higher power density
•Wide operating temperature range -40 to +140°C
•UL94V and RoHS materials
•AEC-Q200 qualified
•Weight : approx 30grams
Application
•Automotive EV/PHV AC/DC onboard battery chargers
•Automotive HV/LV DC/DC converters
Operation
•Up to 36A (RMS or DC) per winding
•Total losses < 4W @100°C/2x36Adc
•Estimated temperature rise on PCB < 45°C (cooling needed)
