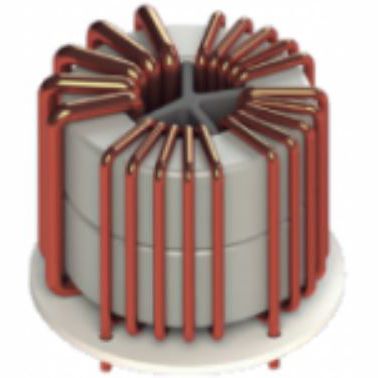

Wire-wound choke CMCN4R3-16H3powerthrough-hole typefor electronics
Add to favorites
Compare this product
Characteristics
- Technology
- wire-wound
- Electrical characteristics
- power
- Configuration
- through-hole type
- Applications
- for automotive applications, for electronics, for EV charger
- Other characteristics
- IP 00
- Voltage
1,500 V
Description
Features
•3-phase + neutral CMC using nanocrystalline core
•Optimized size for higher power density
•Wide operating temperature range -40 to +140°C
•UL94V and RoHS materials
•AEC-Q200 qualified
•Weight : approx 120grams
Application
•Automotive EV/PHV AC/DC onboard battery chargers
Operation
•Up to 3x16Arms+48Arms (or 2x48Arms single-phase)
•Total losses < 12W @100°C/3x16Arms+48Arms
•Cooling of the windings is required in the application
