Plunger pump Orlita PS

for chemicalselectricindustrial

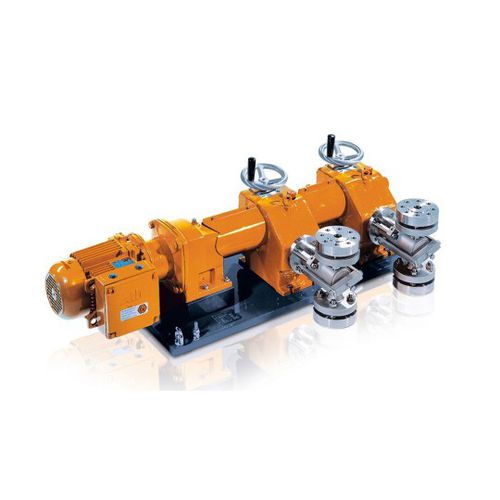

The high-performance plunger metering pump ORLITA® PS enables precise pump capacities even at maximum pressure and temperatures of up to +400 °C. The ORLITA® PS pump has a modular construction and thus versatile uses. Orlita® PS - simple, robust and reliable. ORLITA® PS plunger metering pumps (PS 18 to PS 1400) with a stroke length of 15 to 60 mm provide a capacity ranging from 0 to 37,000 l/h at 400 – 4 bar. A wide range of drive versions is available, including some for use in Exe and Exde areas with ATEX certification. The Orlita® PS product range is designed to comply with API 675. Its modular construction permits the free combination of drives, power ends and dosing heads, producing a pump for a range of different feed rates and media operating at different working pressures. Your benefits Flexible adaptation to the process: Precise capacity even at maximum pressure Metering reproducibility is better than ± 0.5 % within the 10-100% stroke length range under defined conditions and with correct installation. Cone valves for use as suction and/or discharge valves with minimal wear, good self-cleaning and low pressure loss (NPSHR) Excellent hydraulic efficiency Excellent flexibility: The modular construction ensures a wide range of uses It is possible to combine up to 6 metering units, even with different pump capacities, in multiple pump systems
