PolyRex can do more: Processes liquid and powdered polymers.

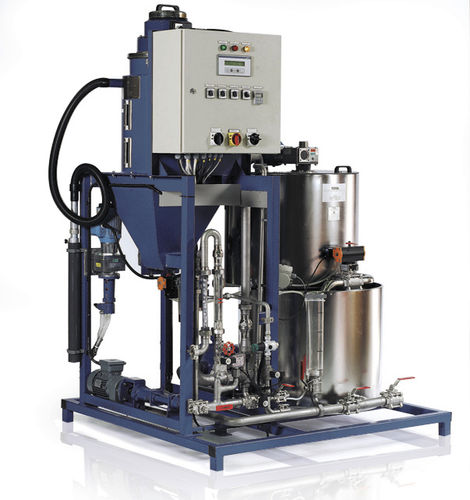

The upper storage tank represents the batching/ maturing tank. The lower tank is the storage tank for the prepared polymer solution. The powdered polymer is transported to the powder feeder by a vacuum conveyor using 2 conveyor screws and mixed into 3 layers with water in the underlying mixer unit; wetting cone, water injector and stirrer in batching tank. The solution is then transferred to the upper storage tank using the water pressure of the diluting water. The polymer solution matures completely in this, a short circuit effect is avoided. After maturing, the solution can be transferred to the lower storage tank via the motorised valve.
Your benefits
Compact controller ABB AC500 PM573-ETH and touch panel CP635
Dust-free filling of the powder storage tank thanks to use of a vacuum conveyor
Double screw metering unit with 2 counter-rotating conveyor screws enables low-pulsation metering with a high level of dosing precision.
Pressure reducer provides for a constant water supply
Effective 3-phase mixing of the polymer solution
No short-circuiting effect: polymer particles cannot pass through the process without activation
