Multi-leaf door

slidingcurved slidingglass

Product overview

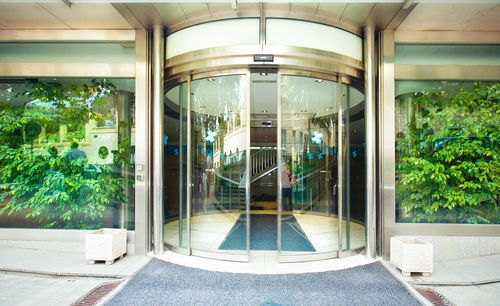

The curved and semi-circular automatic sliding door is a radial-sliding entrance solution for concave or convex geometries. It is supplied with one or two mobile leaves and can be configured to specific radii and curvature angles to adapt to architectural requirements.

Key features

• Available for concave or convex installations with multiple radii and curvature options.
• Configurable as single-slide or bi-parting radial sliding systems.
• Can be combined (two units) to form full circular entrances.
• Integrates obstacle-detection and automatic-reopen functions for user safety and continuous flow.
• Designed for fast opening to reduce thermal losses and improve building energy performance.
• Engineered in compliance with applicable product and safety standards.

Installation and use

• Installation must be performed by qualified personnel to ensure safe and correct operation.
• Requires level, even flooring and structurally stable supports with adequate load-bearing capacity.
• Leaves can be specified in glass or alternative finishes according to project requirements.

Options and customization

• Opening types: single-slide or bi-parting radial motion; central or lateral layouts.
• Profile options: fully framed 20 mm or reduced top/bottom profiles (20 mm) for a slim appearance.
• Operator compatibility: compatible with curved operators such as Visio+ Curvo for curved configurations.
• Activation and control: presence/proximity sensors, touchless switches, remote controls, program selectors and access control integration.

Applications
Suitable for distinctive entrances in hotels, restaurants, airports, commercial buildings and architectural projects requiring curved or semicircular access solutions.

Technical specifications

• Geometry: concave or convex curved leaves; multiple radii and curvature angles supported.
• Configurations: single-leaf or bi-parting radial sliding.
• Profiles: fully framed 20 mm; option for reduced top/bottom profiles 20 mm.
• Operator: compatible with Visio+ Curvo and equivalent curved operators.
• Safety: obstacle detection, automatic reopening, hybrid presence/motion sensor options.
• Activation/control: proximity sensors, touchless controls, remote controls, program switches and access control interfaces.
• Installation requirements: level floor; structurally stable walls and supports; professional installation mandatory.
• Documentation: technical datasheet and DWG/PDF installation drawings available for curved configurations.
• Standards: designed to meet applicable product and usage safety standards.
