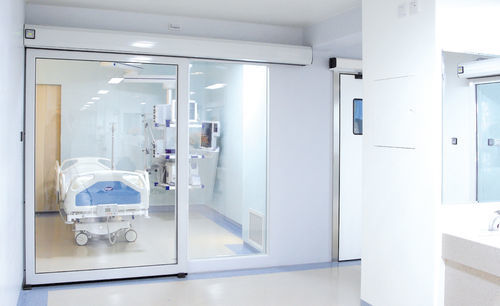

Sliding door Clear View

glassglazedfor hospitals

Product overview
The Clear View hermetic glazed sliding doors by Manusa are engineered to provide airtight sealing while maximising visual access to the interior. Designed for medical observation areas and intensive care units (ICU), they combine controlled-environment performance with full glazed leaves for monitoring and supervision.

Key features

• Hermetic perimeter seal that ensures maximum airtightness when closed; tested to UNE 85170:2016 and UNE-EN 121207:2017 standards.
• Maintains controlled pressure, hygiene, temperature and humidity in the room.
• Integrated safety systems: obstacle detection with automatic reopening and manual release for operation during power loss.
• Compatibility with hermetic door operators and dedicated control accessories.
• Glazing options including tempered or laminated glass, integrated Venetian blind or electro‑polarised (self‑dimming) glass for variable transparency.
• Multiple profile and finish options; standard glass thicknesses typically between 6 mm and 10 mm.

Applications

• Observation rooms, ICU wards and hospital areas requiring interior visibility together with hermetic insulation.
• Cleanrooms and controlled‑pressure environments requiring strict hygiene conditions.

Technical characteristics / specifications

• Product type: Hermetic glazed sliding door (Clear View).
• Primary function: Provide an airtight seal while maximising interior visibility for monitoring.
• Standards: Tested for airtightness (referenced: UNE 85170:2016 and UNE-EN 121207:2017).
• Glass options: Tempered or laminated; integrated Venetian blind; electro‑polarised glass available.
• Glass thickness: Typical options between 6 mm and 10 mm.
• Profile example: Fully framed 44 mm (other configurations available).
• Opening types: Single slide (left or right), with or without fixed leaves.
• Operator compatibility: Compatible with hermetic door operators (e.g. Visio+ Hermetic operator).
• Safety: Obstruction detection with automatic reopening; manual unlock for power loss; people‑safety systems integrated.
• Customization: Screen printing or permanent vinyl, various finishes and profile types.
