Sliding door

lead-linedaluminiumstainless steel

Overview
Lead-lined automatic sliding doors are engineered for medical radiology areas to provide certified radiation shielding, hygiene and controlled airtightness when required. Standard lead thickness options for the leaf are 2 mm or 3 mm; constructions can use a lead layer on each face (for example 1 mm per side) depending on project requirements.

Main features

• Radiation shielding for X-ray and radiology rooms
• Configurable as hermetic (airtight) or non-hermetic installations
• Optional vision panel with leaded glass and integrated camera
• Visible finishes in HPL or stainless steel for hygiene and durability
• Compatibility with automatic operators such as Visio+ series

Construction and materials
Leaves are manufactured with an aluminium frame and high-density polyisocyanurate (PIR) core. Lead sheeting is integrated into the panel. Visible surfaces are supplied in HPL (specific finishes/colours) or stainless steel.

Standards and compliance
Designed and manufactured to meet the requirements for automatic doors in controlled medical environments (UNE 85170) and relevant local regulations for radiation shielding and hygiene.

Applications

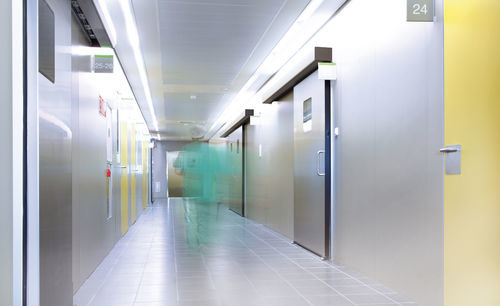

These doors are intended for X-ray rooms, radiology suites and other controlled medical areas requiring radiation protection, hygiene control and optional airtightness.

Technical specifications

• Type: Lead-lined automatic sliding door for X-ray rooms
• Lead thickness (leaf): 2 mm or 3 mm (project dependent)
• Leaf construction: aluminium frame + high-density PIR core
• Lead lining: integrated lead sheet(s) (e.g. 1 mm per side configurations)
• Finishes: HPL (selected finishes/colours) or stainless steel
• Configurations: hermetic or non-hermetic
• Optional: vision panel with leaded glass and camera
• Applicable standard: UNE 85170
