Sliding door

glazedstainless steellead-lined

Overview

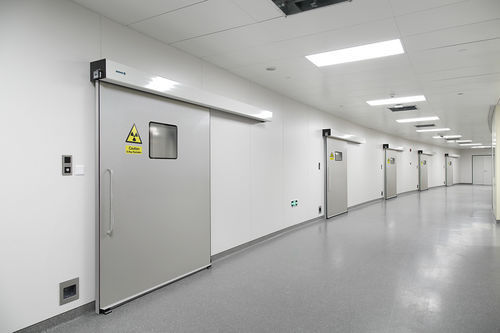

The lead-lined hermetic EI automatic sliding door is engineered for controlled environments requiring combined fire and radiological protection. It provides up to 60 minutes of fire resistance (EI) and radiological shielding up to 3 mm of lead, making it suitable for radiology rooms, pharmaceutical labs and sensitive industrial areas.

Key features

• Fire tests according to EN 1634-1:2014+A1:2018 performed on operator side, opening frame and leaf
• Fire resistance up to 60 minutes (operator side not exposed to fire)
• Radiological shielding up to 3 mm Pb (configurable to project requirements)
• Visio+ hermetic HD operator ensuring high airtightness and IoT connectivity for monitoring and diagnostics
• Single sliding leaf configuration (left or right) with automatic closing on fire alarm activation and/or power failure
• Optional flush-mounted vision panel 450 x 450 mm for controlled visual access
• Stainless steel tubular pull handle (600 mm) and stainless steel recessed handle on the non-operator side
• Leaf finish in HPL paneling with choice of up to 10 colours

Applications

• Hospitals and radiology/X-ray rooms requiring radiation shielding
• Pharmaceutical and research laboratories with contamination control needs
• Critical medical and industrial facilities requiring combined fire and radiological protection

Customization and options

• Manufacture to project-specific sizes and clearances
• Choice of HPL finishes (up to 10 options) and paneling types
• Selectable radiological shielding (2 mm or 3 mm lead per project specification)
• Optional square vision panel (450 x 450 mm) and other glazed variants
• Choice of external tubular pull handle or recessed handle on the non-operator side
• Operator and accessory configurations to adapt airtightness, access control and sensor integration (proximity sensors, command selectors, safety edges)

Documentation & BIM

• Available deliverables: technical datasheets (PDF), detailed drawings (DWG / PDF) and BIM files (RFA) for project integration
• Installation, operation and maintenance documentation provided to assist specification and onsite assembly

Technical specifications

• Standards: Fire tests according to EN 1634-1:2014+A1:2018
• Fire resistance: up to 60 minutes (operator side not exposed to fire)
• Radiological shielding: up to 3 mm Pb (options: 2 mm / 3 mm)
• Operator: Visio+ hermetic HD (high airtightness, IoT-enabled)
• Opening type: single sliding leaf (left or right)
• Automatic behaviour: automatic closing on fire alarm activation and/or power failure
• Vision panel: optional flush-mounted 450 x 450 mm
• Handles: stainless steel tubular handle 600 mm; recessed stainless steel handle on opposite side
• Leaf finish: HPL panelled finish, selectable from up to 10 colours
• Deliverables: technical leaflet (PDF), drawings (DWG/PDF), BIM (RFA)
