Sliding door Visio

pedestrianaluminiumglass

Product overview

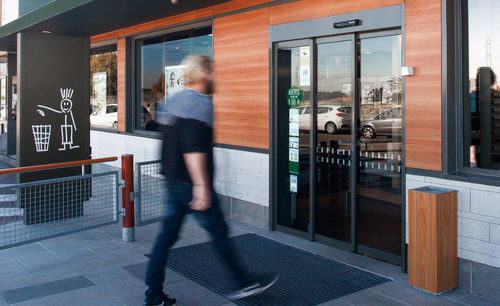

The telescopic sliding door with central or lateral opening is designed for entrances with limited space or where a larger clear opening is required. It provides maximum clear opening in a minimal footprint, improving access in narrow or constrained areas.

Key benefits

• Delivers maximum opening in minimum space (up to two-thirds of the occupied area).
• Integrated safety systems ensure protection of users and reliable operation.
• Obstacle-detection with automatic reopening to prevent incidents and maintain pedestrian flow.
• Fast opening/closing reduces energy losses and improves building energy performance.
• Wide customisation in finishes, colours and profile types to meet project specifications.

Opening types and configurations

• Bi-parting (central) — available with or without fixed leaves; two- and four-leaf configurations.
• Single slide (lateral) — left or right single slide; options with one or two fixed leaves.

Profiles and leaf options

• Top and bottom profiles: 20 mm.
• Reduced top and bottom profiles: 20 mm.
• Fully framed leaves: 20 mm and 30 mm options.
• Nearly fully glazed leaves with a single aluminium profile attached to the top trolley.

Operator and accessories

• Compatible operator: Visio+ Telescopic.
• Accessories: automatic locks, lateral safety sensors (DDS-S), external key-switch, floor locks, touchless switches (Optima Prox+), hybrid movement/presence sensors (DDS-A / DDS-B), remote control (Optima Pocket+), occupancy control systems, program switches (Optima+), etc.

Safety and standards

• Designed and manufactured in compliance with mandatory safety standards for power-operated pedestrian doors (including EN 16005 and applicable regulations).
• Includes certified obstacle-detection and person-protection measures.

Documentation and resources available

• Product range catalogue and technical catalogue (PDF).
• Technical drawings for specific configurations (PDF / DWG).
• Operator technical sheet (Visio+).
• BIM assets available for multiple opening configurations.

Applications / Sectors

• Retail, hotels and restaurants, airports and transport, healthcare, offices and business centres, banks, logistics, residential and food industry installations.

Customisation and finishes

• Leaf options: from almost fully glazed single-profile leaves to fully framed leaves accepting different glass thicknesses.
• Finish and colour options for frames and profiles to suit architectural requirements.

Characteristics / technical specifications

• Compliance: EN 16005 and applicable safety standards for power-operated pedestrian doors.
• Opening configurations: bi-parting (central) and single slide (lateral); options with 1 or 2 fixed leaves.
• Profile options: top & bottom 20 mm; reduced 20 mm; fully framed 20 mm and 30 mm.
• Operator compatibility: Visio+ Telescopic.
• Safety systems: obstacle detection, automatic reopening, lateral safety sensors, hybrid movement/presence detection.
• Documentation: product catalogue (PDF), technical drawings (PDF/DWG), BIM files (RFA), operator technical sheet (PDF).
• Typical applications: constrained entrances, corridor separations, healthcare, retail, airports, logistics and residential projects.
