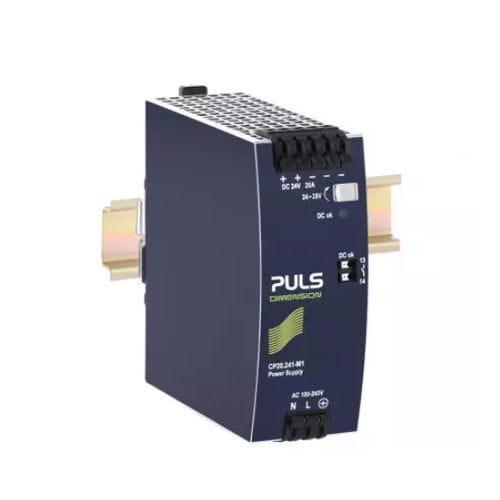

AC/DC power supply CP20.241-M1

adjustablesingle-phaseDIN rail

Harmonic correction - PFC Power factor - 0.98 Input inrush current limitation - active Input inrush current - 5.5 A / 4.5 A External input fuse recommendation - B-10 A / C-10 A Output data Derating - 6.4 W/°C for +45 to +60 °C 12 W/°C for +60 to +70 °C 31.92 W/1000 m for altitudes >2000 m Ripple and noise voltage max. - 50 mVpp Overview Dimensions (WxHxD) - 48 mm x 124 mm x 127 mm Weight per unit (excl. packaging) - 830 g Operating temp. range - -25 °C to 70 °C Connection method - Spring clamps Efficiency, typ. - 95.6 % Power losses, typ. - 22.1 W MTBF SN 29500 @ 40 °C (h) - 569000 h DC-OK signal - yes EMC tested for medical use according to IEC 60601-1-2 Quick-connect spring-clamp terminals Width only 48 mm Efficiency up to 95.6 %, excellent partial load efficiency Easy fuse breaking – 3 times nominal current for 12 ms Safe HiccupPLUS overload mode Active Power Factor Correction (PFC) Minimal inrush current surge Full power between -25 °C and +60 °C DC-OK relay contact
