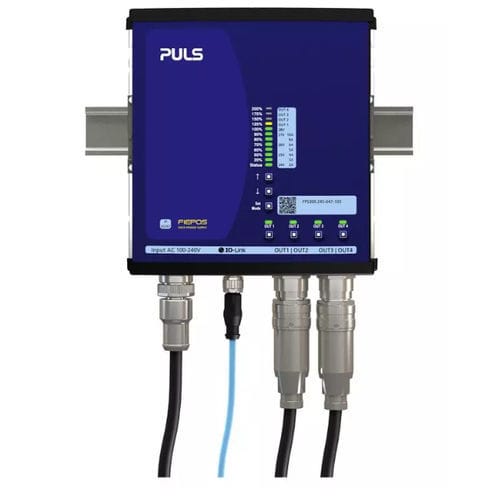

DIN rail power supply FPS300.245-047-103

AC/DCmultiple-outputadjustable

Power factor - 0.97 Input inrush current limitation - NTC Input inrush current - 2.6 A / 6 A External input fuse recommendation - B-6 A / C-6 A Output data Power reserves - 600 W (up to 5s) Derating - 6 W/°C for +45 to +55 °C 10 W/°C for +55 to +70 °C 20 W/1000 m for altitudes >2000 m Ripple and noise voltage max. - 50 mVpp Overview Dimensions (WxHxD) - 181 mm x 183 mm x 59 mm Weight per unit (excl. packaging) - 1200 g Operating temp. range - -25 °C to 70 °C Connection method - Input: 7/8" 3pin | Output: 7/8" 4pin Efficiency, typ. - 95.7 % Power losses, typ. - 13.5 W MTBF SN 29500 @ 40 °C (h) - 384000 h DC-OK signal - yes Features 600 Wpeak 5s Outputs for actors and sensors separately protected 95.7 % full load and excellent partial load efficiencies Output connected to PE (PELV) Version without connection to PE on request Large output capacitors Not potted Negligible low input inrush current surge Full power up to +45 °C IO-Link Input: 7/8" 3 pin | Output: 2x 7/8” 4 pin
