DIN rail power supply CP20.241-ETC
AC/DCsingle-outputsingle-phase

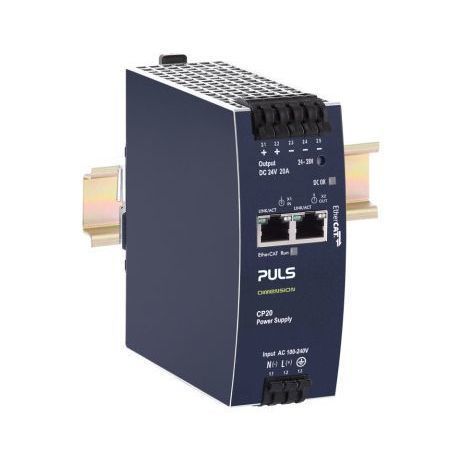

DIN rail power supply - CP20.241-ETC - PULS GmbH - AC/DC / single-output / single-phase
DIN rail power supply - CP20.241-ETC - PULS GmbH - AC/DC / single-output / single-phase
Add to favorites
Compare this product

Characteristics

Mounting / format
DIN rail
Type
AC/DC
Output
single-output
Network
single-phase
Protection
with overload protection
Certifications
CE, UL
Applications
for automation
Other characteristics
compact, with power factor correction, wide input range
Input voltage

Max.: 300 V

Min.: 100 V

Output voltage

Max.: 28 V

Min.: 24 V

Current

17.1 A, 20 A

Power

480 W

Description

Product description
PULS CP20.241-ETC is a compact 1-phase DIN rail power supply with integrated EtherCAT interface, delivering 480 W nominal output at 24 V DC for industrial control and automation applications.

Features
  • AC 100–240 V wide-range input; DC 110–300 V compatible
  • Compact width: 48 mm
  • Integrated EtherCAT interface for direct access to internal and external parameters
  • High efficiency: typ. 95.5 %
  • 20 % output power reserve (PowerBoost)
  • Easy Fuse Breaking: 3× nominal current for 12 ms
  • Safe HiccupPLUS overload mode
  • Full power operation from -25 °C to +60 °C (derating above +60 °C)
  • Current sharing for parallel operation
  • 3‑year (36 months) warranty


Input data
AC input voltage: 100–240 V AC (-15 %/+10 %)
DC input voltage: 110–300 V DC (±20 %)
Harmonic correction: active
Power factor: 0.98
Inrush current limitation: active (inrush current: 10 A / 4.5 A)
Recommended external input fuse: B‑10 A / C‑10 A

Output data
Nominal voltage: 24 V DC
Adjustment range: 24–28 V
Output current: 20 A @ 24 V / 17.1 A @ 28 V
Output power: 480 W
Power reserves: 20 % PowerBoost
Derating: 12.5 W/°C above +60 °C

Overview
Dimensions (W×H×D): 48 × 124 × 127 mm
Weight (unit, excl. packaging): 835 g
Mounting: DIN rail
Operating temperature range: -25 °C to +70 °C
Connection: Spring clamps
Efficiency (typ.): 95.5 %
Power losses (typ.): 23.0 W
MTBF (SN 29500 @ 40 °C): 356,000 h

Ordering / technical specifications
  • Article number: CP20.241-ETC
  • Manufacturer: PULS
  • Nominal output power: 480 W
  • Nominal output voltage: 24 V DC
  • Nominal output current: 20 A
  • Phases: 1
  • Dimensions: 48 × 124 × 127 mm
  • Weight: 835 g
  • Mounting: DIN rail
  • Connection: Spring clamps
  • Operating temperature: -25 °C to +70 °C
  • Efficiency (typ.): 95.5 %
  • Power losses (typ.): 23.0 W
  • MTBF: 356,000 h (SN 29500 @ 40 °C)
  • UPC: 875404004547
  • Warranty: 36 months
  • Country of origin: Czech Republic
  • HS code: 85044083
  • Product page: https://products.pulspower.com/en/cp20-241-etc.html
