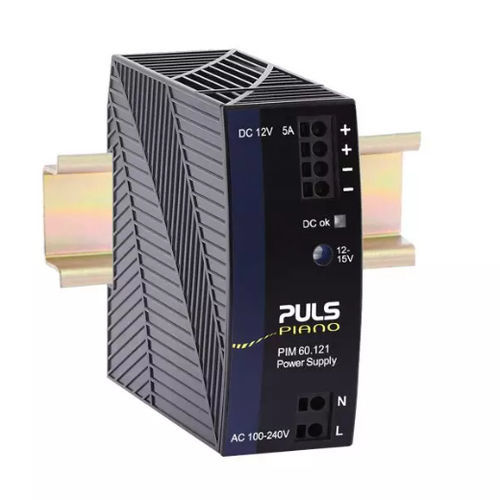

AC/DC power supply PIM60.121

adjustablesingle-phaseDIN rail

Power factor - 0.470000 Input inrush current limitation - NTC Input inrush current - 15 A / 36 A External input fuse recommendation - B-6 A / C-4 A Output data Derating - 1.44 W/°C for +60 to +70 °C Ripple and noise voltage max. - 100 mVpp Overview Dimensions (WxHxD) - 36 mm x 90 mm x 91 mm Weight per unit (excl. packaging) - 225 g Housing material - Polycarbonate Operating temp. range - -10 °C to 70 °C Connection method - Push-in clamps Efficiency, typ. - 90.7 % Power losses, typ. - 6.2 W MTBF SN 29500 @ 40 °C (h) - 1673000 h DC-OK signal - yes NEC CLASS 2 compliant Cost optimized without compromising quality or reliability No PE connection required Width only 36 mm Efficiency up to 90.7 % Low no-load power losses Full power between -10 °C and +60 °C Push-in terminals
