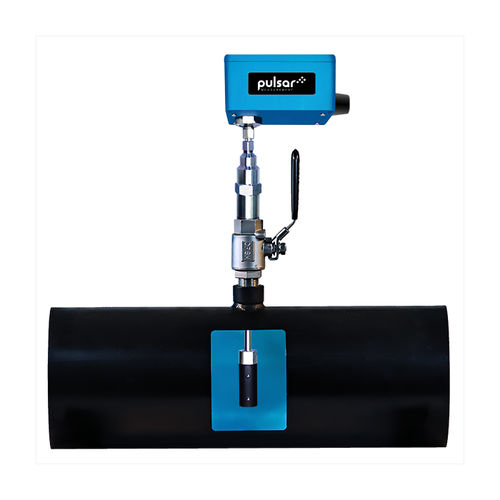

Electromagnetic flow meter ISM 5.0

for liquidsDN80 - 3"insertion

The ISM 5.0 Electromagnetic Flow Meter is an accurate, low-cost insertion mag flow meter alternative to full-bore mag flow meters. Measure the flow of water and conductive liquids in full pipes from 80 mm to 1800 mm (3 in to 72 in) diameter. The ISM 5.0 dual pair electrode sensor inserts through a tap in the pipe wall. It can be easily installed in new pipe systems or by a hot tap in pressurized pipes with flowing liquids. There are no moving parts so obstruction to flow and pressure drop is minimal. Installation through a full port ball valve allows easy retraction and reinsertion without shutting down flow. The dual-electrode sensor and continuous auto-zero function provide high accuracy – even at low flow rates. State-of-the-art electronics and patented design features help maintain its NIST traceable accuracy over time. FEATURES Electromagnetic with no moving parts Simplified hot tap insertion design Installs in 80 mm - 1800 mm (3 in - 72 in) diameter pipes Selectable 4-20 mA, 0-5 V or 0-10 V output 0-500 Hz frequency output Scalable pulse output Spec name: - Description: Flow Measurement Range - 0.031 m/s to 6.2 m/s (0.1 ft/s to 20 ft/s), 200:1 turndown Approvals - NSF 61 and 372 Nominal Pipe Size - DN 75 mm to 1800 mm (3 in to 72 in D) Conductivity Range - 20 to 60,000 μSiemens/cm Scalable Pulse Output - Isolated solid state dry contact rated 50 V DC, 100 mA maximum Pulse duration: 0.5 sec, 1 sec, 2 sec, or 6 sec Signal Cable Length - 7.6 m (25 ft) PVC jacketed multi-conductor Approximate Shipping Weight - 2.75 kg (6 lbs) Options: - Description: Model ISM 5.0-B - For bi-directional flow Extra Sensor Cable - Separate length 7.6 m, 15 m, or 30 m
