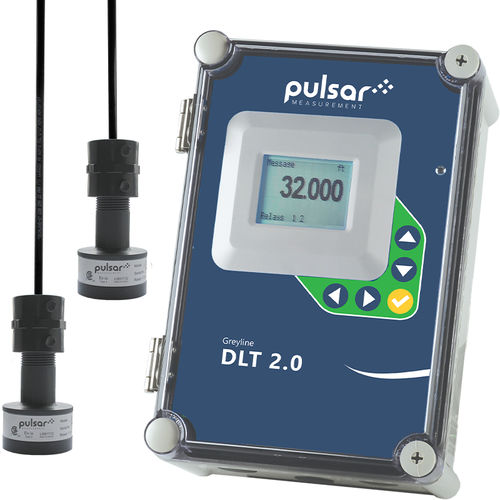

Differential level transmitter DLT 2.0
for water4-20 mAwith digital display

differential level transmitter
differential level transmitter
differential level transmitter
Add to favorites
Compare this product


Characteristics

Technology
differential
Medium
for water
Interface
4-20 mA
Other characteristics
with digital display, intrinsically safe, programmable, PVC, IP66
Level range

Max.: 152 m (498'08")

Min.: 0 m (0'00")

Process pressure

Max.: 137,895.15 Pa

Min.: 0 Pa (0 psi)

Process temperature

Max.: 65 °C (149 °F)

Min.: -40 °C (-40 °F)

Description

Reduce costs and simplify instrumentation at treatment plant headworks. The DLT 2.0 can measure both differential level plus flow through a flume. Install one Sensor on each side of a mechanical barscreen to continuously monitor, transmit, and control level. Use the built-in control relays or 4-20mA outputs to automatically activate the barscreen rake at preset levels. The DLT 2.0 is a simple solution for barscreen level control at wastewater treatment plants, pump stations, and combined sewer systems. It includes two non-contacting ultrasonic sensors to measure level. With sensors positioned above a channel, up and downstream from the barscreen, the DLT 2.0 can display and transmit differential level. The downstream sensor can also be installed above a flume or weir to measure and totalize open channel flow. Three 4-20mA outputs are configured to transmit upstream level, downstream level (or flow), and differential level. Built-in relays can be calibrated for level control, differential level control, or open channel flow. Other DLT 2.0 applications include a two-tank inventory where you can monitor the level in two tanks with one instrument. The DLT 2.0 will alternate display of level in both tanks plus transmit 4-20mA outputs. Use the built-in relays to activate alarms or level controls. This versatile dual-sensor instrument can also be configured as a submergence alarm for Parshall flumes.

VIDEO
