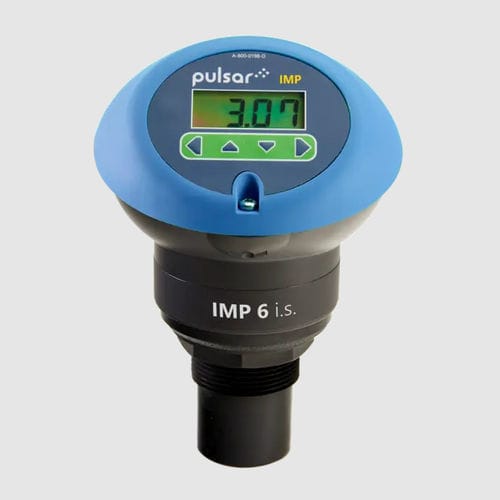

Ultrasonic level sensor IMP I.S.

for solidsfor liquids4-20 mA

The IMP range of level sensors feature a combined transducer and controller in one self-contained unit. All IMP units from Pulsar Measurement are non-contacting, accurate, and reliable level measurement units. The IMP level sensors do not come into contact with the process, therefore there is no need to shut down or interrupt operations. Featuring specially designed digital echo processing technology, the IMP level measurement units provide simple, accurate, and reliable level measurement on their onboard LCD displays. The IMP I.S. level sensor is certified to ATEX standard EEx ia IIC T4 and IECEx, and is available with wetted parts in PVDF, making it ideal for measuring in corrosive or aggressive applications. Available in three measurement sizes from 3 m to 10 m (9.8 ft to 32.8 ft) the unit is simple and straightforward to set up using the onboard keypad and menu-led programming system. FEATURES Compact and self-contained level measurement Simple menu led setup High power and narrow beam angles SPECS Spec: - Description: Dimensions - 186 mm H x 133 mm D (7.3 in H x 5.2 in D) Weight - Nominal 1 kg (2.2 lb) Input Voltage Range - 11-30 V, 3.5-22mA Accuracy - ±0.25% or 6 mm (0.2 in); whichever is greater Resolution - ±0.1% or 2 mm (0.1 in); whichever is greater 4-20mA Outputs - Resolution 5 μA (both active and passive outputs) 4-20mA Outputs - Resolution 5 μA (both active and passive outputs) Temperature Compensation - Via internal temperature sensor (0.5 °C (± 32.9 °F) accuracy). Level and volume conversion are installed allowing linearisation for tank shapes. PC Interface - All parameters can be acc
