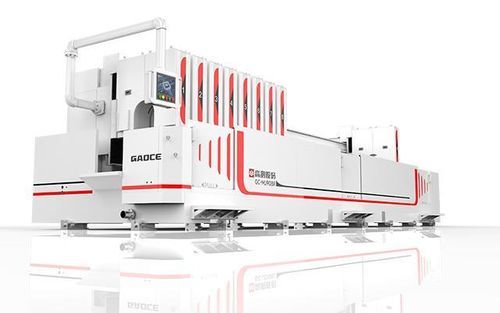

Multi-wire cutting machine GC-MJ706R/908R for monocrystalline siliconbarfor industrial applications
Add to favorites
Compare this product
Characteristics
- Technology
- multi-wire
- Material
- for monocrystalline silicon
- Product handled
- bar
- Applications
- for industrial applications
- Other characteristics
- automatic, rotary
Description
Product Introduction
Launched in 2022, the GC-MJ908R is a dedicated cutter for monocrystalline silicon rods. It is engineered for direct integration with AGV loading systems and optimized for high yield, minimal end-face slope and reduced edge chipping. Optional automation modules (automatic rotation, automatic tool setting, automatic head/tail removal) are available to lower labor requirements.
Product Parameters
End-face slope: ≤0.5 mm
Flatness: ≤0.2 mm
Parallelism: ≤0.5 mm
Appearance quality: Almost no edge chipping except at head and tail
Average machining time (M10, excluding auxiliary time): 6 min/piece
Characteristics / Technical specifications
Launched in 2022, the GC-MJ908R is a dedicated cutter for monocrystalline silicon rods. It is engineered for direct integration with AGV loading systems and optimized for high yield, minimal end-face slope and reduced edge chipping. Optional automation modules (automatic rotation, automatic tool setting, automatic head/tail removal) are available to lower labor requirements.
Product Parameters
End-face slope: ≤0.5 mm
Flatness: ≤0.2 mm
Parallelism: ≤0.5 mm
Appearance quality: Almost no edge chipping except at head and tail
Average machining time (M10, excluding auxiliary time): 6 min/piece
Characteristics / Technical specifications
- Model: GC-MJ908R
- Application: Monocrystalline silicon rod cutting
- Launch year: 2022
- High production yield, minimal end-face slope, reduced edge chipping
- Direct docking with AGV for loading; no truss manipulator required
- Optional functions: AGV direct loading, automatic rotation, automatic tool setting, automatic head/tail removal
- End-face slope: ≤0.5 mm
- Flatness: ≤0.2 mm
- Parallelism: ≤0.5 mm
- Appearance quality: Almost no edge chipping except at head and tail
- Average machining time: 6 min/piece (M10, excluding auxiliary time)
