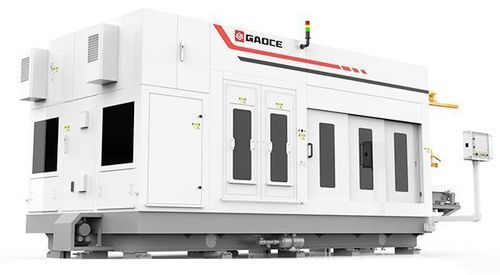

Workpiece grinding machine GC-JM103

for brickshigh-productivityhigh-precision

Product Introduction
This specialized equipment processes ground silicon brick into half brick. Launched in 2023, it delivers high throughput, consistent dimensional quality and is designed for easy integration with automation. It enables half-brick production without modifying existing process equipment, helping customers avoid the cost and disruption of adding a separate half-brick line.

Product Parameters
Length range: 150–950 mm
Width range: 182–230 mm
Processing efficiency: 18.5 min / 2 pieces (example: 830 mm length, 210-spec half brick)
Dimensional tolerance: ±0.05 mm
Perpendicularity of machined surface: ±0.05°

Key Features

• Converts ground silicon brick into half brick
• Introduced in 2023
• High processing throughput
• Consistent dimensional accuracy and surface perpendicularity
• Designed for automation integration
• No change to existing process equipment required

Characteristics / Technical specifications

• Length range: 150–950 mm
• Width range: 182–230 mm
• Processing efficiency: 18.5 min per 2 pieces (example: 830 mm length, 210-spec half brick)
• Dimensional tolerance: ±0.05 mm
• Perpendicularity of machined surface: ±0.05°
