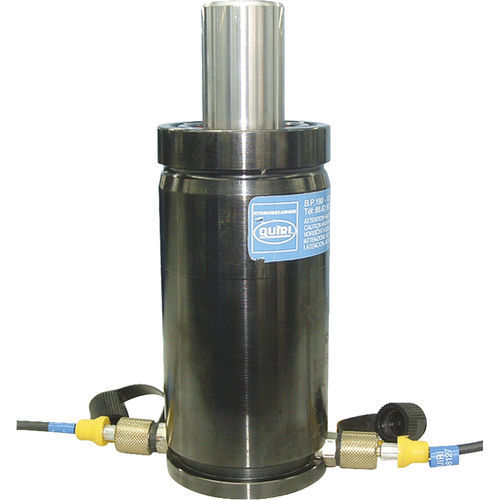

Stainless steel gas spring ISO for the automobile industryfor industrial usecompact
Add to favorites
Compare this product
Characteristics
- Rod material
- stainless steel
- Applications
- for industrial use, for the automobile industry
- Other characteristics
- compact, adjustable
- Force
Min.: 250 daN
Max.: 10,000 daN
- Stroke
Min.: 0 mm
(0 in)Max.: 300 mm
(11.8 in)- Extended length
Min.: 85 mm
(3.3 in)Max.: 225 mm
(8.9 in)- Compressed length
Min.: 75 mm
(3 in)Max.: 145 mm
(5.7 in)- Body diameter
Min.: 38 mm
(1.5 in)Max.: 165 mm
(6.5 in)
Description
• Conform to standard dimensions ISO11901-1, CNOMO E.24.54.815.N
• Comply with European directive PED 97/23EC
• Force : from 250 to 10 000 daN (10t)
• Stroke : up to 300mm
• Designed for heavy duty
• Double sealing
• Oil lubricated guide ring
• Solid structure (no welding)
• Can be used in piping system
• Gas : Nitrogen
• Maximum inflating pressure : 150 bar
• Minimum inflating pressure : 25 bar
• Temperature limit : 0/+70°C
• Maximum piston rod speed : 1.6 m/s
