compact gas spring / for the automobile industry
RGC

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
compact gas spring / for the automobile industry compact gas spring / for the automobile industry - RGC
{{requestButtons}}

Characteristics

  • Type:

    compact

  • Applications:

    for the automobile industry

  • Outer diameter:

    Min.: 25 mm (1 in)

    Max.: 150 mm (5.9 in)

  • Force:

    Min.: 420 daN

    Max.: 18,300 daN

Description

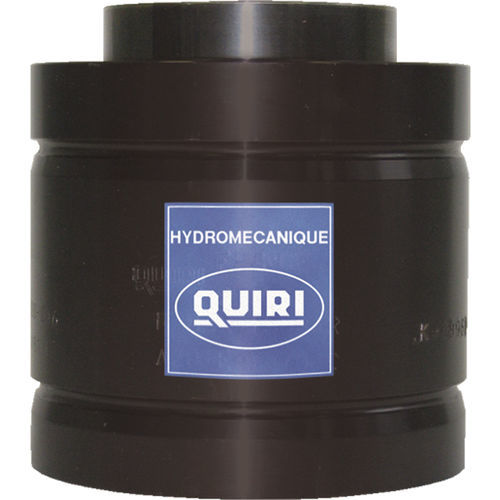

Gas spring with body diameter 25 to 150 mm, force 420 to 18300 daN.
Gas spring with following specifications :

Super compact size
Body diameter : 25 to 150 mm
9 forces available, 420 to 18300 daN
Inflating valve on the bottom for all sizes
Rear adapter optional for front connexion G1/8″
M6 connexion until force 2400 daN, beyond connexion G1/8″
Double sealing and lubrification for intensive use
Maximum stroke 50 mm
Maximum inflating pressure : 150 bar
Minimum inflating pressure : 25 bar
Temperatur limit : 0 / +70°C
Maximum piston rod speed : 1.6 m/s
Gaz : nitrogen
