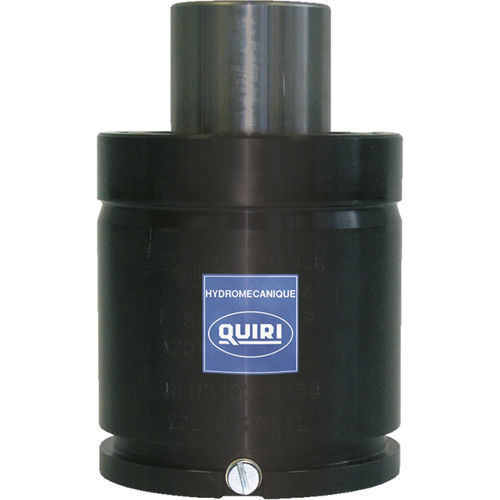

Stainless steel gas spring RGH 500for the automobile industryfor industrial usecompact
Add to favorites
Compare this product
Characteristics
- Rod material
- stainless steel
- Applications
- for industrial use, for the automobile industry
- Other characteristics
- compact, adjustable
- Force
Max.: 5,000 daN
Min.: 500 daN
- Stroke
Max.: 125 mm
(4.9 in)Min.: 6 mm
(0.2 in)- Extended length
Max.: 300 mm
(11.8 in)Min.: 62 mm
(2.4 in)- Compressed length
Max.: 175 mm
(6.9 in)Min.: 56 mm
(2.2 in)- Body diameter
Max.: 120 mm
(4.7 in)Min.: 45 mm
(1.8 in)
Description
•M6 connexion on the front for all sizes
•Maximum inflating pressure : 150 bar
•Minimum inflating pressure : 25 bar
•Temperature limit : 0 / +70°C
•Maximum piston rod speed : 0,5 m/s
•Gas : nitrogen
• Shortest length gas spring
• Body diameter is same as ISO type – from 45 mm to 120 mm
• Can be used in piping system
