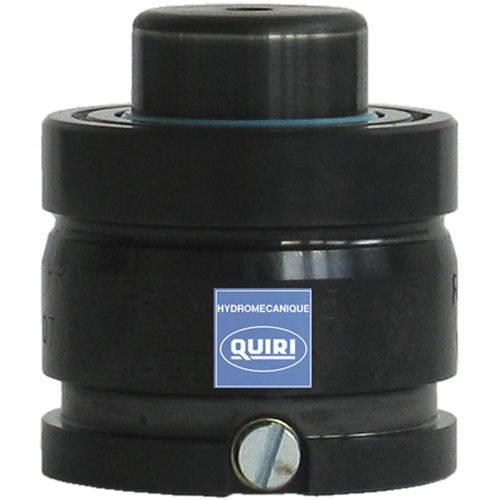

Stainless steel gas spring RGP 1500for the automobile industryfor industrial usecompact
Add to favorites
Compare this product
Characteristics
- Rod material
- stainless steel
- Applications
- for industrial use, for the automobile industry
- Other characteristics
- compact, adjustable
- Force
Max.: 9,500 daN
Min.: 170 daN
- Stroke
Max.: 150 mm
(5.9 in)Min.: 7 mm
(0.3 in)- Extended length
Max.: 294 mm
(11.6 in)Min.: 70 mm
(2.8 in)- Compressed length
Max.: 169 mm
(6.7 in)Min.: 57 mm
(2.2 in)- Body diameter
Max.: 150 mm
(5.9 in)Min.: 19 mm
(0.7 in)
Description
Maximum inflating pressure : 150 bar
Minimum inflating pressure : 25 bar
Temperature limit : 0 / +70°C
Maximum piston rod speed : 1.6 m/s
Gas : nitrogen
Complies with VDI safety standards.
• Very compact size
• Solid design (no welding)
