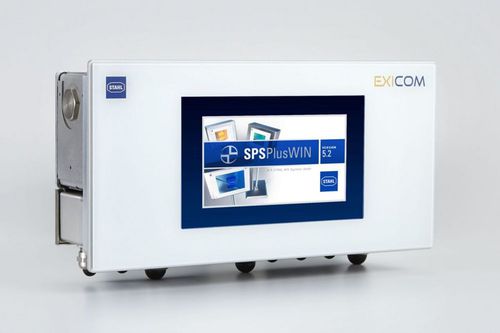

Projected capacitive touchscreen operator interface EAGLERAPTORPMA

panel-mount800 x 480ARM Cortex-A8

Operator Interface for panel mounting, 7" display, 800 x 480 pixels, projected-capacitive glass touch screen Can be installed in hazardous zones 1, 2, 21 and 22 without additional enclosure Robust HMI systems with degree of protection IP69 at the front Data is transmitted via Ethernet as 10/100Base-TX via CAT5 and two serial interfaces Functional Description - R. STAHL's PM ET-208 series HMI systems are Operator Interfaces for panel mounting in hazardous zones 1, 2, 21 and 22. Their brilliant 7" widescreen displays with a resolution of 800 x 480 pixels (format 15:9) have a projected-capacitive touch screen. RFID readers and barcode scanners are practical accessories to extend functionality. The Operator Interfaces run with Windows Embedded Compact 7 (WEC 7), and for visualisation you can choose either Movicon CE or SPSPlus RT. For data transmission, Ethernet as 10/100Base-TX via CAT5 and two serial interfaces are available. Series - EAGLE and RAPTOR Operator Interfaces panel-mount devices Product description - 7" Operator Interface Technology - Operator Interface Application range (zones) - 1, 2, 21, 22 Application range (divisions) - Class I, Division 2, Class I, Zone 1, Zone 21 Scope - Canada (CEC), China (CCC / CNEx), EU (CE / ATEX), India (PESO / BIS), International (IECEx), Japan (JPNEx), Korea (KCC), Korea (KCS), Marine / ship certification DNV only AC decives, USA (NEC) IECEx certification - IECEx BVS 15.0039X ATEX certification - BVS 15 ATEX E 042 X NEC certification - UL E202379 CE-Code certification - UL E202379 PESO certification - A/P/HQ/TN/104/6230P541910/1 BIS certification - R-41201782
