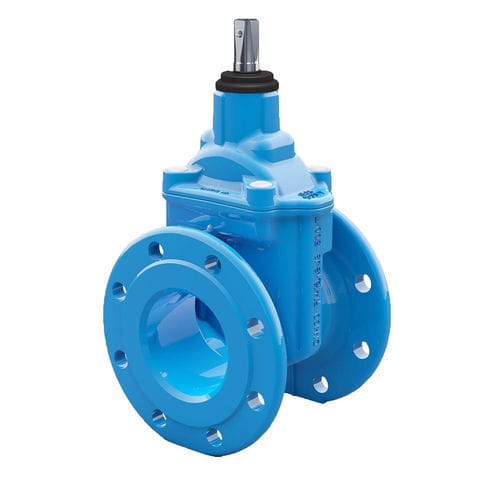

Gate valve TR seriespneumatically-operatedfor waterflange
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- pneumatically-operated
- Media
- for water
- Body
- flange, seat
- Applications
- industrial, dam
- Associated function
- fire protection
- DN
Max.: 700 mm
(27.559 in)Min.: 40 mm
(1.575 in)- Pressure
10 bar, 16 bar
(145 psi, 232.1 psi)- Temperature
Max.: 70 °C
(158 °F)Min.: -10 °C
(14 °F)
Description
INFINITY and its new wedge and stem technology ensures smooth functionality with outstanding low torque values.
New guiding system for the wedge with male composite sliding skate in order to easily achieve the 2500 cycles enurance test required by European standards.
Bayonet stuffing nut with three o-rings to guarantee the tightness throughout the stem.
Patented three locking tab for bayonet system to avoid self dismantling, leakage and blow up risk.
_Body length: long pattern (serie S15) and short pattern (serie S14), according to EN 558.
Catalogs
TRS TRL INFINITY
16 Pages
TRS TRL - G2
8 Pages
