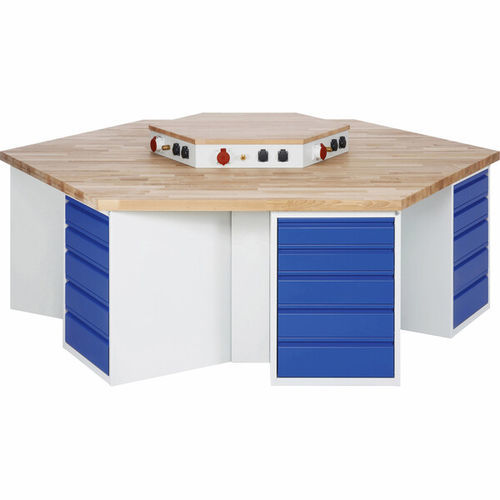

Workshop workstation 03-497I-135B4S-EA1.11industrialbench-top
Add to favorites
Compare this product
Characteristics
- Applications
- for workshops, industrial
- Other characteristics
- bench-top
Description
Description
Equipment (underframe / drawers / modules)
Notes / Legal
Technical specifications
- Beech solid worktop, thickness 40 mm.
- 6-sided worktop (2-part, including plate-to-plate connector and fittings). Edge length 1350 mm, overall dimensions 2700 x 2340 mm. Beech lamellae with finger-joint gluing. Front edge rounded. Surface protected with eco-friendly lacquer oil. Produced 100% in-house using PEFC-certified raw material from sustainable regional forestry.
- System underframe, height 800 mm.
- Underframe containers made of quality sheet metal.
- Media unit included with connection cable 09-AL400V (contains 5-core supply cable with plug) and preparation for compressed air and data feed.
- Connection cable: conductor cross-section 2.5 mm² per core; total load up to 10.5 kW.
- Note: The media unit must not be opened; each side of the media unit is limited to a maximum of 16 A.
Equipment (underframe / drawers / modules)
- Media unit: all 6 sides equipped with built-in modules (from left to right on each side):
- 1x built-in module 09-EM200-230V-2DE: module with 2x socket with hinged cover 230V / 16A (Country/Plug: Germany / Type F).
- 1x built-in module 09-EM100-LUFT: module with compressed-air quick coupling G1/4", NW 7.2, brass.
- 1x built-in module 09-EM100-400V: module with three-phase socket with hinged cover 400V / 16A.
- Built-in modules comply with directives: 2001/95/EC (General Product Safety), 2006/42/EC (Machinery Directive), 2011/65/EU (RoHS), 2014/35/EU (electrical equipment within certain voltage limits).
- 6 underframe containers (each W 580 x D 650 x H 800 mm) flush with the worktop edge, each container with 5 drawers of size L: 2 x H120 mm, 2 x H150 mm, 1 x H180 mm.
- Drawer size L: internal W 490 x D 560 mm, load capacity 100 kg. Part-extension ball-bearing slides (90% extension) with self-return and anti-reverse. Usable drawer height = front height minus 15 mm. Drawer pan closed all around to accept drawer divider sets.
- Continuous integrated handle strip (grip edge).
- Central locking (pin cylinder lock with 2 keys).
- Capping set between underframe containers.
Notes / Legal
- The media unit is not intended to be opened and each side of the media unit is limited to max. 16 A.
- Built-in modules and electrical equipment comply with the mentioned European directives (product safety, machinery directive, RoHS, etc.).
Technical specifications
- Drawer type: part-extension 90%
- Width: 2700 mm
- Depth: 2340 mm
- Height: 840 mm
- Stationary surface load: 1000 kg
- Number of drawers: 30
- Top type: beech solid worktop
- Top thickness: 40 mm
- Underframe containers: W 580 x D 650 x H 800 mm (6 units)
- Drawer internal dimensions (size L): W 490 x D 560 mm, load capacity 100 kg
- Connection cable: conductor cross-section 2.5 mm², total load up to 10.5 kW
