Beech workbench 8468
for workshops3-drawerdoor

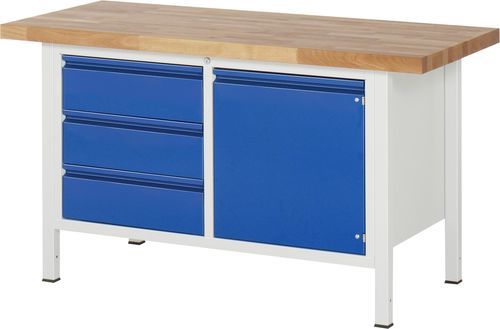

Beech workbench - 8468 - RAU - for workshops / 3-drawer / door
Beech workbench - 8468 - RAU - for workshops / 3-drawer / door
Beech workbench - 8468 - RAU - for workshops / 3-drawer / door - image - 2
Beech workbench - 8468 - RAU - for workshops / 3-drawer / door - image - 3
Beech workbench - 8468 - RAU - for workshops / 3-drawer / door - image - 4
Beech workbench - 8468 - RAU - for workshops / 3-drawer / door - image - 5
Add to favorites
Compare this product

Characteristics

Worktop material
beech
Applications
for workshops
Other characteristics
3-drawer, height-adjustable, fully-welded, door, heavy-duty
Length

1,500 mm
(59 in)

Width

700 mm
(28 in)

Height

840 mm
(33 in)

Load

1,250 kg
(2,755.8 lb)

Description

Description
  • Workbench - Model 8468 BASIC. Configuration: 3 drawers and 1 door.
  • 40 mm solid beech worktop composed of finger-jointed beech lamellas. Front edge radius, other edges chamfered. Surface protected with environmentally friendly lacquer-oil. Classic worktop characteristics: high load capacity, pressure-resistant, long service life. 100% production from raw material to worktop (PEFC-certified raw material).
  • System underframe: W1235 x D650 x H800 mm. 4-leg welded frame with two pairs of legs made from 45 x 45 x 2 mm steel profile tube including top and bottom depth braces. Leg feet equipped with end piece including anti-slip nodules for secure standing. Leg feet prepared for integration/retrofitting of a height adjustment and/or castor set.


Equipment
  • 1 double underframe container, W1145 x D650 x H620 mm, layout: left 3 x drawers (size L, front height H180 mm), right 1 x hinged door (size L, front height H540 mm) with 1 height-adjustable shelf behind.
  • Drawers: internal dimensions W490 x D560 mm, load capacity 100 kg. Usable drawer height = front height minus 15 mm.
  • Roll-bearing partial extension slides, 90% extension, with self-closing and anti-reverse lock.
  • Hinged doors with self-return spring hinges, opening up to 180°.
  • Continuous, fully integrated handle strip (handle edge).
  • Central locking: pin-cylinder lock with 2 keys.


Technical specifications
  • Article number: 03-8468I2-157R4S.11
  • EAN: 4040376888839
  • Extension type: 90% partial extension
  • Width: 1500 mm
  • Depth: 700 mm
  • Height: 840 mm
  • Top type: solid beech worktop
  • Top thickness: 40 mm
  • Static surface load: 1250 kg
  • Number of drawers: 3
