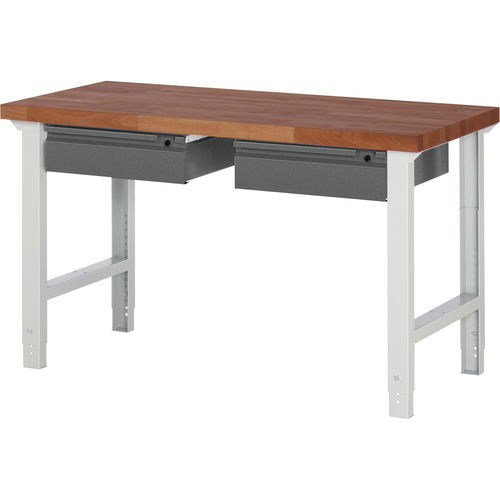

Beech workbench 03-7002I1-157BR4H-Z.942

for workshopswith drawerheavy-duty

Product description

• Solid beech worktop, thickness 40 mm.
• Beech lamellas, finger‑joint glued. Front edge rounded (radius), other edges chamfered. Surface protected with environmentally friendly lacquered linseed oil. Classic worktop: load‑bearing, pressure‑resistant, durable, natural, wear‑resistant and reusable. 100% in‑house production (from tree to worktop) using PEFC‑certified raw material from sustainable regional forestry.
• System underframe, specifications on the product page: W1500 x D650 x H750–1100 mm (additional depths/heights in technical data).

Equipment

• 2 underframe drawers, B520 x T650 x H175 mm with the following arrangement:
• 1 x drawer size L 1xH150 mm.
• Drawer size L: internal B490 x D560 mm, load capacity 50 kg. Roller‑mounted slides (90% extension). Usable drawer height equals front height minus 15 mm. Drawer pan fully closed to optimally receive drawer division sets.
• Continuous, fully integrated handle strip (handle edge).
• Central locking (pin‑cylinder lock with 2 keys).

Technical data (table content)
Extension type: partial extension 90%
Width: 1500 mm
Static surface load: 750 kg
Number of drawers: 2
Depth: 700 mm (in various places also indicated D650 mm)
Height from: 790 mm
Height to: 1140 mm
Top type: solid beech worktop
Top thickness: 40 mm


Note
Work height information / system underframe and variants for widths/heights are configurable on the product page (e.g. width 1500 or 2000 mm; variants without shelf, etc.).


Characteristics / Specifications

• Worktop material: solid beech, thickness 40 mm, finger‑joint glued
• Edges: front edge rounded, other edges chamfered
• Surface: lacquered linseed oil (environmentally friendly)
• Frame: 4‑leg frame with two pairs of leg feet made of C‑profile steel (70x50x2 mm) including depth bracing; leg feet top with wide bearing surface (120 mm) and bottom with integrated height adjustment via C‑profile steel with hole raster (25 mm); floor anchoring possible via drilled base plates
• Drawers: 2 units, roller‑mounted slides (90%), load capacity drawer size L: 50 kg, closed drawer pan
• Lock: central lock with pin‑cylinder lock (2 keys)
• Maximum static surface load: 750 kg
• EAN: 4040376492029
