Beech workbench 03-7001I7-207BR4H-Z.942
with drawerwith shelvesheight-adjustable

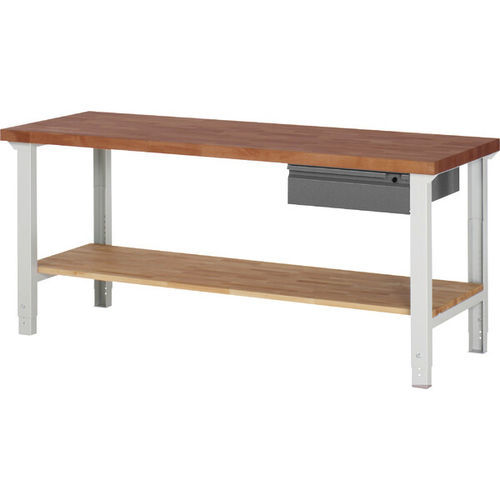

Beech workbench - 03-7001I7-207BR4H-Z.942 - RAU - with drawer / with shelves / height-adjustable
Beech workbench - 03-7001I7-207BR4H-Z.942 - RAU - with drawer / with shelves / height-adjustable
Beech workbench - 03-7001I7-207BR4H-Z.942 - RAU - with drawer / with shelves / height-adjustable - image - 2
Beech workbench - 03-7001I7-207BR4H-Z.942 - RAU - with drawer / with shelves / height-adjustable - image - 3
Beech workbench - 03-7001I7-207BR4H-Z.942 - RAU - with drawer / with shelves / height-adjustable - image - 4
Beech workbench - 03-7001I7-207BR4H-Z.942 - RAU - with drawer / with shelves / height-adjustable - image - 5
Beech workbench - 03-7001I7-207BR4H-Z.942 - RAU - with drawer / with shelves / height-adjustable - image - 6
Beech workbench - 03-7001I7-207BR4H-Z.942 - RAU - with drawer / with shelves / height-adjustable - image - 7
Add to favorites
Compare this product

Characteristics

Worktop material
beech
Other characteristics
with drawer, with shelves, height-adjustable
Length

2,000 mm
(79 in)

Width

700 mm
(28 in)

Height

Min.: 790 mm
(31 in)

Max.: 1,140 mm
(45 in)

Load

750 kg
(1,653.5 lb)

Description

Description
  • Solid red-beech worktop, 40 mm thick, made from finger-jointed beech lamellae. Front edge rounded, other edges chamfered. Surface finished with eco-friendly oil.
  • Produced in-house from PEFC-certified regional raw material.
  • Overall dimensions: width 2000 mm, depth 700 mm, height adjustable 790–1140 mm.
  • Four-leg system frame with C-profile steel feet (70x50x2 mm), depth braces and wide upper support area (120 mm). Integrated height adjustment via C-profile with 25 mm hole pitch and perforated base plates for floor anchoring.


Equipment
  • One underframe drawer, mountable on right or left, exterior B520 x T650 x H175 mm.
  • Drawer inner dimensions: B490 x T560 mm; usable height approx. 150 mm; load capacity 50 kg.
  • Roller-mounted slides, 90% extension. Drawer pan fully closed to accept drawer partition sets.
  • Continuous integrated grip strip on the front.
  • Central lock (pin cylinder lock with 2 keys).
  • Lower solid beech shelf (depth 545 mm, thickness 25 mm, compartment height 540 mm).


Technical data
  • Drawer travel: partial extension 90%
  • Width: 2000 mm
  • Static load capacity (stationary): 750 kg
  • Number of drawers: 1
  • Depth: 700 mm
  • Height: 790–1140 mm (depending on adjustment)
  • Top type: solid red-beech worktop
  • Top thickness: 40 mm


Specifications
  • Width: 2000 mm
  • Depth: 700 mm
  • Top thickness: 40 mm (solid red-beech)
  • Frame height adjustment: 790–1140 mm
  • Static load capacity: 750 kg
  • Drawer (inner): B490 x T560 mm, load 50 kg, extension 90%
