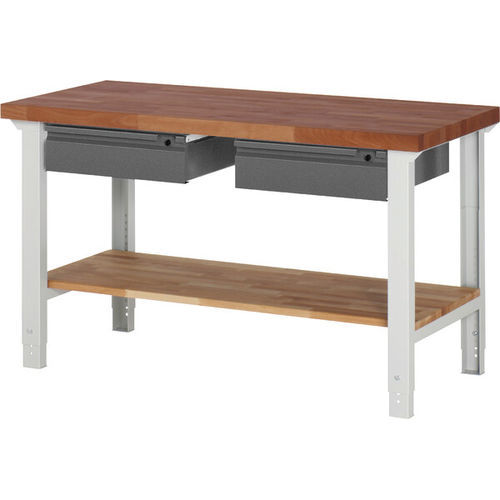

Beech workbench 03-7002I7-157BR4H-Z.942
for workshopsindustrialwith drawer

Beech workbench - 03-7002I7-157BR4H-Z.942 - RAU - for workshops / industrial / with drawer
Beech workbench - 03-7002I7-157BR4H-Z.942 - RAU - for workshops / industrial / with drawer
Beech workbench - 03-7002I7-157BR4H-Z.942 - RAU - for workshops / industrial / with drawer - image - 2
Beech workbench - 03-7002I7-157BR4H-Z.942 - RAU - for workshops / industrial / with drawer - image - 3
Beech workbench - 03-7002I7-157BR4H-Z.942 - RAU - for workshops / industrial / with drawer - image - 4
Beech workbench - 03-7002I7-157BR4H-Z.942 - RAU - for workshops / industrial / with drawer - image - 5
Beech workbench - 03-7002I7-157BR4H-Z.942 - RAU - for workshops / industrial / with drawer - image - 6
Beech workbench - 03-7002I7-157BR4H-Z.942 - RAU - for workshops / industrial / with drawer - image - 7
Add to favorites
Compare this product

Characteristics

Worktop material
beech
Applications
for workshops, industrial
Other characteristics
with drawer, 2-drawer, with shelves, height-adjustable, with compartments, for heavy loads
Length

1,500 mm
(59 in)

Width

700 mm
(28 in)

Height

Min.: 790 mm
(31 in)

Max.: 1,140 mm
(45 in)

Load

750 kg
(1,653.5 lb)

Description

Product description
  • Solid beech (red-heart) worktop, 40 mm thickness.
  • Finger-jointed beech lamellas with glued joints; front edge radius, other edges chamfered.
  • Surface protection with environmentally friendly lacquering oil. Classic construction: load-bearing, pressure-resistant and wear-resistant; 100% in-house production using PEFC-certified regional raw material.
  • System substructure configured for 1500 mm width (see technical data for depth and height-adjustable range).


Features
  • 2 underframe drawers B520 × T650 × H175 mm with internal layout: 1 × size L drawer (internal B490 × T560 mm), load capacity 50 kg.
  • Roller-mounted slides (90% extension). Usable drawer height equals front height minus 15 mm. Drawer pan fully closed to accommodate drawer divider sets.
  • Continuous integrated handle strip (grip edge).
  • Central lock (pin tumbler) supplied with 2 keys.
  • Beech solid bottom shelf (depth 545 mm, thickness 25 mm, compartment height 540 mm).
  • Stable system substructure: 4-leg frame with two foot pairs in C-profile steel (70 × 50 × 2 mm), including top and bottom depth braces; top of frame feet with wide support surface (120 mm) and integrated height adjustment at the bottom via C-profile steel with 25 mm hole pitch; floor anchoring possible via drilled foot plates.


Additional features / Notes
  • The worktop is a classic reusable solid wood corpus made of red-heart beech.
  • Designed for industrial use; product variants available in different widths (e.g. 1500 mm and 2000 mm).
  • Lead time according to product page: 5 working days (variant B1500, beech solid execution).


Technical specifications
  • EAN: 4040376492043
  • Article number: 03-7002I7-157BR4H-Z.942
  • Extension type: partial extension 90%
  • Width: 1500 mm
  • Stationary surface load: 750 kg
  • Number of drawers: 2
  • Depth: 700 mm
  • Height from: 790 mm
  • Height to: 1140 mm
  • Top type: solid beech worktop
  • Top thickness: 40 mm
