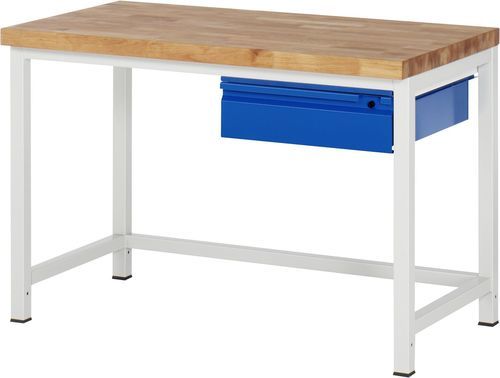

Beech workbench 8001
for workshopsfully-weldedwith drawer

Beech workbench - 8001 - RAU - for workshops / fully-welded / with drawer
Beech workbench - 8001 - RAU - for workshops / fully-welded / with drawer
Beech workbench - 8001 - RAU - for workshops / fully-welded / with drawer - image - 2
Beech workbench - 8001 - RAU - for workshops / fully-welded / with drawer - image - 3
Add to favorites
Compare this product

Characteristics

Worktop material
beech
Applications
for workshops
Other characteristics
fully-welded, with drawer
Length

1,250 mm
(49 in)

Width

700 mm
(28 in)

Height

840 mm
(33 in)

Load

1,250 kg
(2,755.8 lb)

Description

Description
  • Beech solid worktop, thickness 40 mm. Slatted beech top with finger-joint (dovetail) gluing. Front edge radius, other edges chamfered. Surface protected with an environmentally friendly oil-lacquer finish. Material from PEFC-certified regional forestry, produced in-house.
  • System underframe: B1245 x D650 x H800 mm (underframe dimensions incl. frame).
  • 4-leg welded frame constructed from square steel tube profile (45 x 45 x 2 mm) with depth bracing (top and bottom). Frame feet fitted with end caps including anti-slip studs. Crossbars from C-profile (40 x 40 x 2 mm) placed under the worktop (front and rear) and at the rear bottom. Frame prepared for retrofitting height adjustment and/or castor set.


Equipment
  • 1 underframe drawer on the right, exterior B520 x D650 x H175 mm with division: 1 x drawer size L 1 x H150 mm.
  • Drawer L-size internal dimensions: B490 x D560 mm; load capacity 50 kg. Usable height corresponds to front height minus 15 mm. Roller-mounted slides, 90% extension.
  • Continuous integrated handle strip along the front edge.
  • Central lock (pin cylinder lock with 2 keys).


Delivery & notes
  • Delivery time: approx. 5 working days.
  • Static surface load according to technical data (see specifications).


Technical specifications
  • Slide type: Partial extension 90%
  • Width: 1250 mm
  • Depth: 700 mm
  • Height: 840 mm
  • Static surface load: 1250 kg
  • Number of drawers: 1
  • Top type: Beech solid worktop
  • Top thickness: 40 mm
  • System underframe: 4-leg welded frame, square steel tube 45 x 45 x 2 mm with crossbracing
  • Drawer internal (L-size): B490 x D560 mm, load 50 kg, 90% extension
