Polyvinyl chloride floor tile H7T4646CDBL

recycled plasticanti-slipoil-resistant

Overview
Modular anti-fatigue floor tile system engineered for industrial zones to support wheeled equipment and high point loads. Pre-installed PVC inserts reinforce the underside and a 64-point support structure provides uniform load distribution and integrated cable routing.

Performance Ratings
Cushioning: Medium
Pressure Distribution: Ultimate
Bounce-Back: Medium
Top Surface Grip: High
Floor Grip: High

Key Features

• Pre-installed PVC inserts reinforcing the underside of each tile.

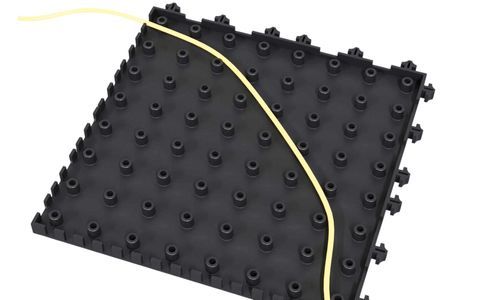

• 64-point support structure for optimal load distribution and cable management.
• Rated to carry wheeled equipment and point loads up to 4,535 kg.
• Fully connectable with other H-Series tiles for modular, reconfigurable layouts.
• Bevelled edge and yellow/black safety ramps available for transitions.

Recommended Use

• Harsh dry industrial environments handling heavy wheeled equipment or product.
• Areas with forklift traffic.
• Logistics, warehousing and heavy-duty handling zones.
• Loading and unloading docks.
• High-load industrial production areas.

Ergonomic Guidance

• Suitable for prolonged standing across full shifts.
• Suitable for all operator sizes.

Available Configurations

• 46 cm × 46 cm modular tiles, extendable and reconfigurable.
• Bevelled edge options and safety ramps in yellow/black.
• Full compatibility with other H-Series products.

Installation & Maintenance
Prepare the surface: ensure floor is clean, dry and free of dust, oil or grease. Install: connect tiles to form the required area. Routine cleaning: sweep or hose to remove dust and debris. Deep cleaning: use a pH-neutral floor cleaner and non-abrasive tools; rinse thoroughly. Avoid harsh chemicals and abrasive pads that can fill the anti-slip texture or reduce traction.

Origin
Made in the UK

Technical specifications

• Material: 100% recycled PVC
• Fire rating: Cfl – s2
• Max load capacity: 4,535 kg
• Moisture resistance: High
• Oil resistance: High
• Chemical resistance: High
• Recyclable: Yes
• REACH: Yes
• Phthalate-free: Yes
